Fra:
PreSonus

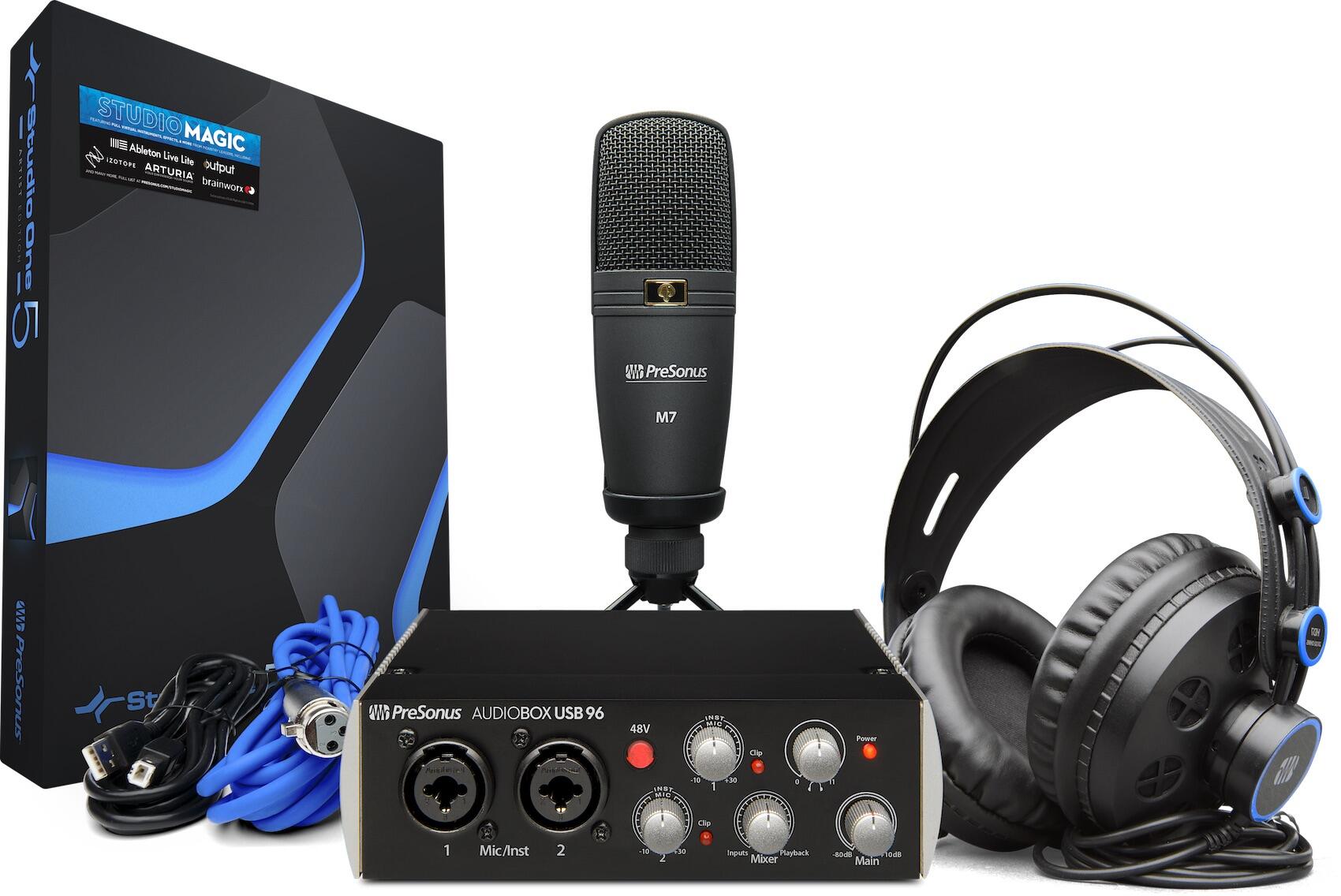

PreSonus - AudioBox 96 Studio 25th Ann Edition - Bundle
1.529,00
PreSonus - AudioBox 96 Studio 25th Ann Edition - Bundle - Komplet lydkortspakke med kondensator mikrofon, hovedtelefoner, lydkort samt kabler.
AudioBox USB® 96
- Bus-powered USB audio and MIDI interface
- Perfect match with Studio One® Artist software for Mac® and Windows®
- 24-bit resolution, 44.1, 48, 88.1, and 96 kHz sampling rate
- 2 combo mic/instrument inputs with Class A mic preamplifiers
- 48V phantom power (for included M7 microphone or other condenser microphones)
- Zero-latency monitoring via internal analog mixer
- Headphone jack with level control (for included HD7 headphones or other headphones)
- 1/3U rack-mountable
- Computer-to-interface connection cable included
Studio One Artist software
- Elegant single-window work environment
- Powerful drag-and-drop functionality
- Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
- Content browser with convenient sort options and preview player
- Most intuitive MIDI-mapping system available
- Real-time audio time-stretching and resampling
- Multitrack comping and MIDI editing
- Transient detection and editing and groove extraction
- Automatic delay compensation
- Advanced automation
- Integrates tightly with Celemony Melodyne
- Instantly configures to PreSonus® interfaces
- Compatible with ASIO-, Windows Audio-, and Core Audio-compliant interfaces
- 26 Native Effects 32-bit effects and virtual instrument plug-ins
- 10+ GB of third-party software, loops, and instruments
- Mac- and Windows-compatible
M7 Microphone
- Large-diaphragm design
- Captures far more detail than a dynamic mic
- Mic stand adaptor
- Phantom-powered via AudioBox USB
- 9' / 3 m cable included
- Cloth carry bag included
HD7 Headphones
- High neodymium resolution drivers
- Precision-tuned acoustic chamber
- Extended bass response
- Built tough to withstand abuse
- Auto-fit head pads
- Comfortable and long-lasting ear pads
- 98" / 2.5m single-side cable
- Optimized pressure
- Lightweight
Model/varenr.:
Audiobox 96 Studio 25 th
Vægt:
0,583 kg
Andre købte også
Computer system requirements:
Below are the minimum computer-system requirements for AudioBox USB 96 Studio.
macOS®
- macOS® 10.13 or higher (64-bit only)
- Intel® Core™ i3 or better
- Minimum 4GB RAM / Recommended 8GB or more
Windows®
- Windows® 10 (64-bit only)
- Intel® Core™ i3/AMD A10 processor or better
- Minimum 4GB RAM / Recommended 8GB or more
Mac and Windows Systems
- USB 2.0 port
- Internet connection
- Internal or external 7200 RPM storage drive highly recommended
- 30 GB hard disk space
- Monitor with 1366x768 resolution
The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio or MIDI signals. Monitor resolution for both PC and Macintosh should be no lower than 1024x768 pixels.
VST is a registered trademark of Steinberg Media Technologies GmbH
ASIO is a trademark and software of Steinberg Media Technologies GmbH
Technical Specifications
AudioBox USB® 96 Specifications |
|
|---|---|
Microphone Preamp |
|
| Type | XLR Female Balanced |
| Frequency Response (±3.0 dB) | 20 Hz to 20 kHz |
| Input Impedance (Balanced) | 1200Ω |
| THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) | < 0.008% |
| S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) | > 95 dB |
| Common Mode Rejection Ratio (1 kHz, 55 dB Gain) | > 45 dB |
| Gain Control Range (± 1 dB) | 0 dB to 35 dB |
| Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) | -3 dBu |
| Phantom Power (±2 VDC) | +48 VDC |
Instrument Input |
|
|---|---|
| Type | ¼" |
| TRS Female Unbalanced Input Impedance | 0.5 MΩ |
Line Outputs |
|
|---|---|
| Type | ¼" |
| Balanced Output Impedance | 51Ω |
Headphone Output |
|
|---|---|
| Type | ¼" TRS Active Stereo |
| Maximum Output | 60 mW/Ch @ 60Ω Load |
| Frequency Response (±1.0 dB) | 20 Hz - 30 kHz |
MIDI I/O |
|
|---|---|
| Type | Dual 5-pin Female DIN |
Digital Audio |
|
|---|---|
| ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) | 105 dB |
| DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) | 105 dB |
| Bit Depth | 24 |
| Reference Level for 0 dBFS | +4 dBu |
| Internal Sample Frequency Selections (kHz) | 44.1, 48, 88.2, 96 |
| Power | USB 2.0 Bus-powered |
Physical |
|
|---|---|
| Dimensions | 1/3U (steel chassis) |
| Height | 5.5” (139.7 mm) |
| Depth | 1.75" (44.45 mm) |
| Width | 5.5” (139.7 mm) |
| Weight | 1.4 lbs (0.64 kg) |
M7 Microphone Specifications |
|
|---|---|
General |
|
| Type | Large-diaphragm condenser microphone |
| Element | Electret |
| Polar Pattern | Cardioid |
| Frequency Response | 40 Hz - 18 kHz |
| Sensitivity | -39 dBV/pa (12.2 mV/pa) |
| Rated Impedance | 200Ω |
| Equivalent Input Noise (EIN) | 20 dB |
| Maximum SPL | 136 dB SPL |
| Phantom Power Required | +12 to +52 VDC, 3 mA |
| S/N Ratio | 74 dB |
| Dynamic Range | 11 dB |
| Current Consumption | 3.5 mA |
Physical |
|
|---|---|
| Diameter | 2.13" (54 mm), maximum |
| Length | 6.69" (170 mm) |
| Weight | 11.3 oz. (320g) |
HD7 Headphone Specifications |
|
|---|---|
General |
|
| Acoustic Design | Dynamic, semi-open |
| Driver | 50 mm, neodymium |
| Frequency Response | 10 Hz to 30 kHz |
| Sensitivity | 98 dB SPL (1 mW) |
| Maximum Power | 300 mW |
| Rated Impedance | 56Ω |
| Earpad | Leather |
Physical |
|
|---|---|
| Weight, without Cable | 7.8 oz (222g) |
| Cable | 8' 2" (2.5m) straight, single-sided |
| Plug Adapter | 1/8" to 1/4" (3.5 to 6.3 mm), screw-on, gold-plated, stereo mini-plug |
For mere information, besøg dette produkts hjemmeside.
