Fra:
PreSonus

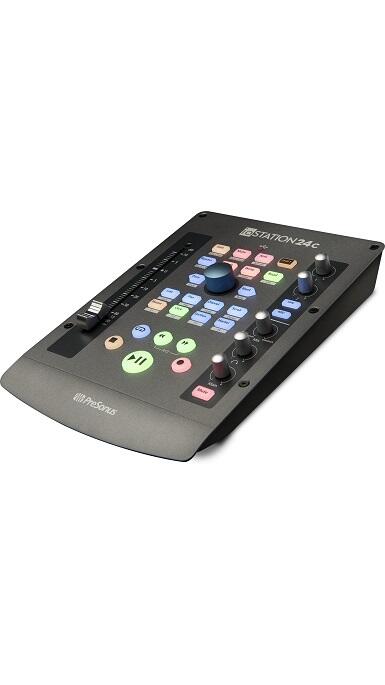

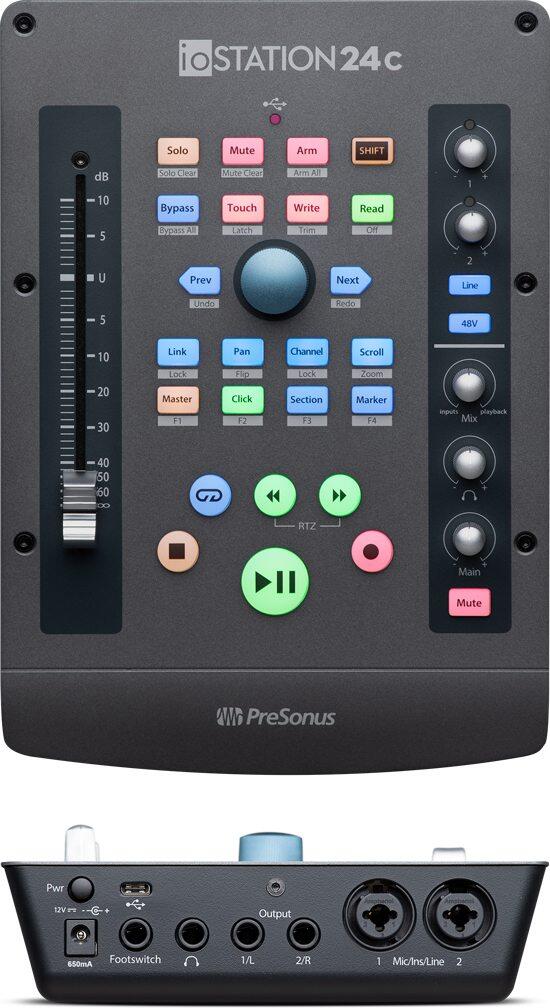

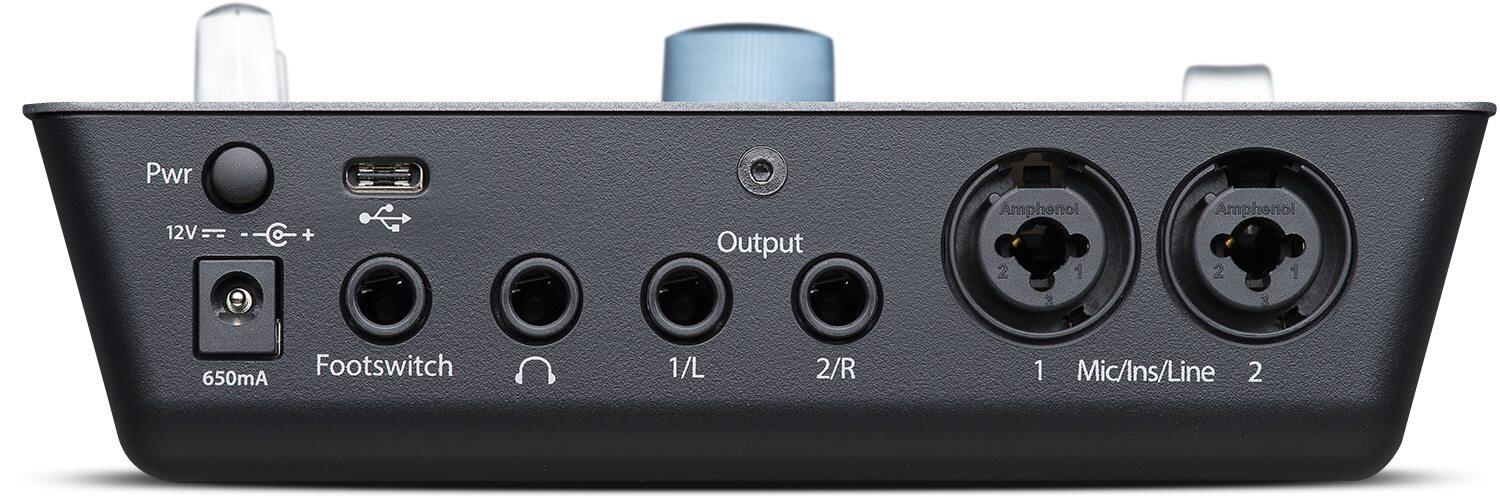

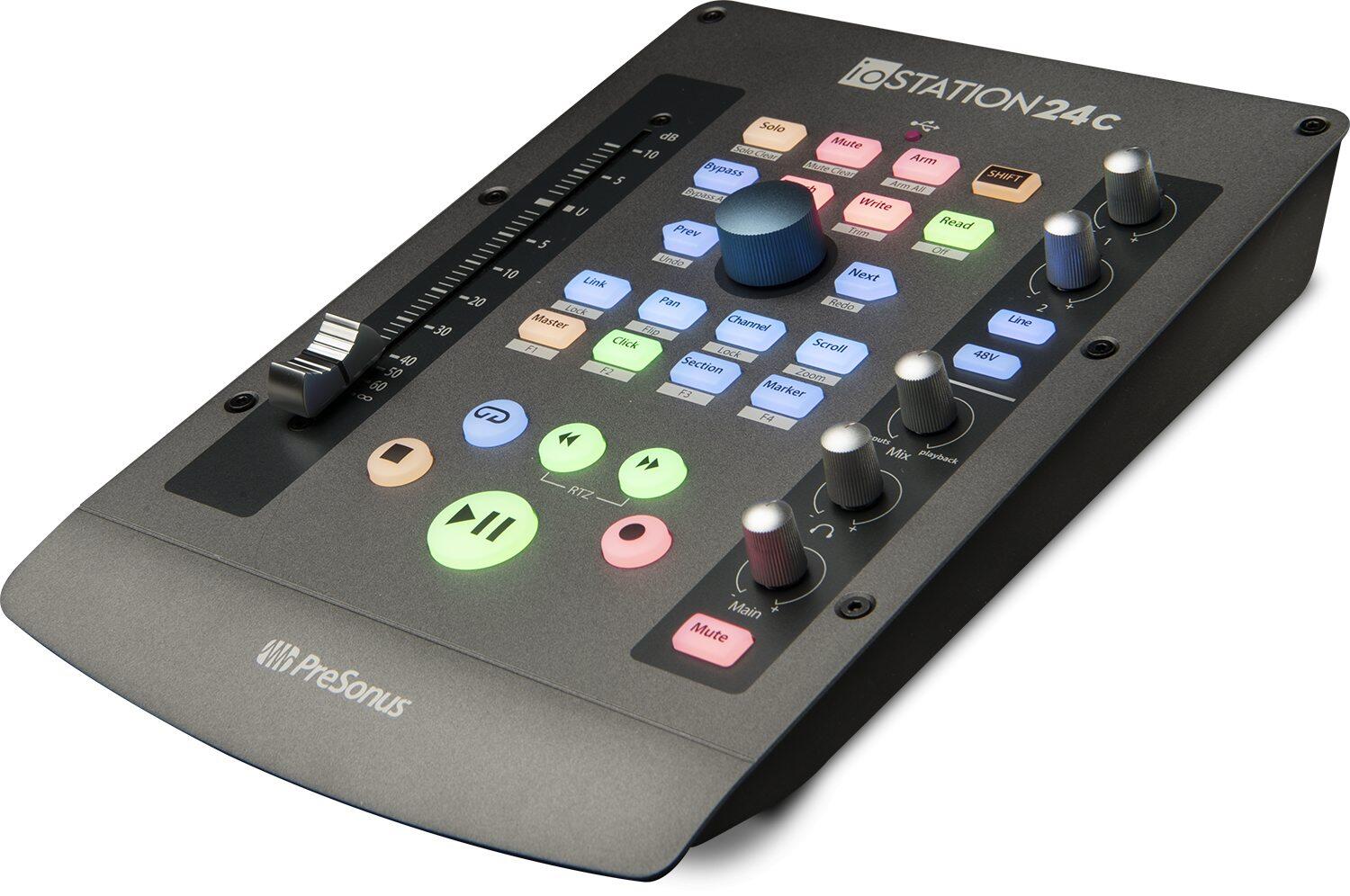

Presonus - ioStation 24c
2.269,00
Presonus - ioStation 24c - Fint lille begynder / rejse lydkort og "production controller" med 2 instrument indgange - dobbelt stik (XLR og Jack). Nemt at tage med sig på farten.
General Features
- Two products in one: audio interface and production controller
- Record through two high-quality XMAX mic preamps
- Control your favorite DAW with a touch-sensitive motorized fader and intuitive navigation controls
- Compact, ergonomic design fits into any studio, whether in your bedroom or your backpack
Recording Features
- USB-C™ compatible (USB 2.0), 24-bit/192 kHz audio interface
- 2 mic/instrument/line inputs with XMAX mic preamps
- 2 balanced ¼” TRS main outputs
- Simultaneous I/O up to 2 inputs and 2 outputs
- Mixer knob for low-latency direct input monitoring
- 1 ¼” headphone output with independent level control
- USB 2.0 connectivity, macOS/Windows compatible
Production Features
- Single touch-sensitive, 100 mm long-throw, motorized fader
- Large, 360° button encoder
- Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
- Drop Marker, Next/Prev Marker, Next/Prev Event
- General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off
- Session Navigator provides quick control over Track Scrolling, Timeline Scrolling, and much more
- Channel Controls: Level, Pan, Solo, Mute, Rec Arm
- Automation Controls: Touch, Latch, Trim, Write, Read, Off
- Native Studio One support with tightly integrated control
- Dedicated MCU modes for Logic, Live, and Cubase / Nuendo
- Customized HUI implementation for Pro Tools
- Footswitch input for hands-free start/stop (footswitch not included)
Included Software
- Studio One Artist recording and production software
- Over 6GB of additional loops and sample content
- Studio Magic Plug-in Suite
Model/varenr.:
ioStation 24c
Vægt:
0,635 kg
Andre købte også
Computer system requirements:
Below are the minimum computer-system requirements for the ioStation 24c.
Windows
- Windows® 10 (64-bit only)
- Intel® i3 / AMD A10 processor or better
- 4 GB RAM (8 GB or more recommended)
Mac
- macOS® 10.13 or higher (64-bit only)
- Intel® i3 or better
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB-C™ or USB-A 2.0 port compatibility
- 32 GB hard disk space
- PreSonus Universal Control 2.0 or higher
- Monitor with 1366x768 resolution (high-dpi monitor recommended)
- Multitouch-enabled monitor required for touch operation
Note: The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio signals.
VST is a registered trademark of Steinberg Media Technologies GmbH
ASIO is a trademark and software of Steinberg Media Technologies GmbH
Technical Specifications
Microphone Preamp |
|
|---|---|
| Type | XLR Female (via Combo), Balanced |
| Maximum Input Level | +16 dBu (Balanced, min. gain) |
| Gain Control Range | 80 dB |
| Frequency Response | 20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz) |
| Dynamic Range | > 107 dB (A-wtd, min. gain) |
| Total Harmonic Distortion | < 0.007% (1 kHz, min. gain) |
| EIN | < -128 dBu (max gain, 40Ω, 22 kHz BW, A-wtd) |
| Input Impedance | 1.6 kΩ |
| Phantom Power | +48V, > 8 mA per input |
Instrument Inputs |
|
|---|---|
| Type | ¼” TS Female (via Combo), Unbalanced |
| Maximum Input Level | +15 dBu (Unbalanced, min. gain) |
| Gain Control Range | 80 dB |
| Frequency Response | 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz) |
| Dynamic Range | > 110 dB (A-wtd, min. gain) |
| Total Harmonic Distortion | < 0.012% (1kHz, -1 dBFS, min. gain) |
| Input Impedance | > 1 MΩ |
Line Inputs |
|
|---|---|
| Type | ¼” TRS Female (via Combo), Balanced |
| Maximum Input Level | + 22 dBu (Balanced, min. gain) |
| Frequency Response | 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz) |
| Dynamic Range | > 114 dB (A-wtd, min. gain) |
| Total Harmonic Distortion | < 0.007% (1 kHz, -1 dBFS, min. gain) |
| Input Impedance | 10 kΩ |
Main and Line Outputs |
|
|---|---|
| Type | ¼” TRS Female, impedance balanced |
| Maximum Output Level | +18 dBu (Balanced) |
| Frequency Response | 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz) |
| Dynamic Range | > 109 dB (A-wtd) |
| Total Harmonic Distortion | < 0.005% (1 kHz, +4 dBu) |
Headphone Outputs |
|
|---|---|
| Type | ¼” TRS Female, Stereo, Unbalanced |
| Maximum Output Level | 150 mW/channel (56Ω load) |
| Frequency Response | 20 Hz to 20 kHz (±0.2 dB, 56Ω load, 48 kHz) |
| Dynamic Range | > 107 dB (A-wtd) |
| Total Harmonic Distortion | < 0.02% (1 kHz, -1 dBFS, no load) |
| Headphone Impedance (working range) | 32Ω to 300Ω |
Digital Audio |
|
|---|---|
| Connection Type | USB 2.0 over USB-C™ Compatible Connection |
| ADC Dynamic Range | 115 dB (A-wtd) |
| DAC Dynamic Range | 115 dB (A-wtd) |
| Bit Depth | 24 bits |
| Internally Supported Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
Clock |
|
|---|---|
| Jitter | < 70 ps RMS (20 Hz – 20 kHz) |
| Jitter Attenuation | > 60 dB (1 ns in => 1 ps out) |
Power |
|
| 12 VDC, 1.2A, external power supply |
Physical |
|
| Height | 2.4" (61 mm) |
| Depth | 6.8" (172 mm) |
| Width | 9.6" (244 mm) |
| Weight | 2.2 lbs (1 kg) |
