Hammond XK-5

30.790,00

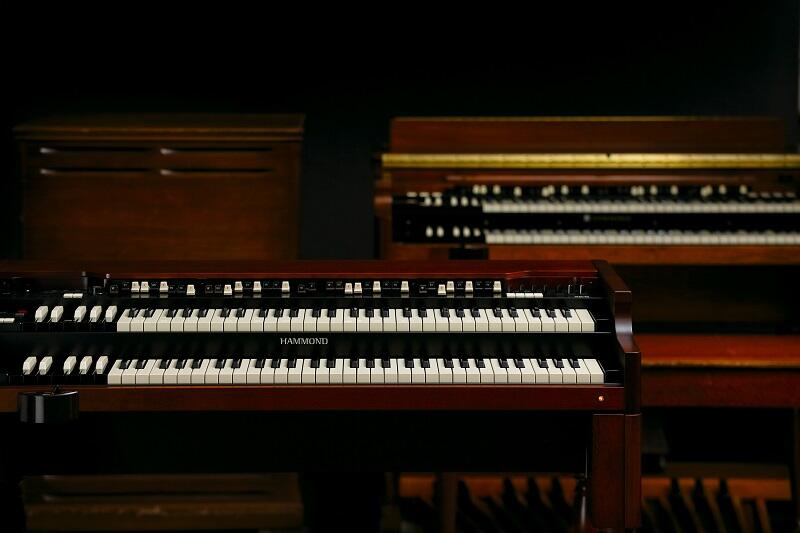

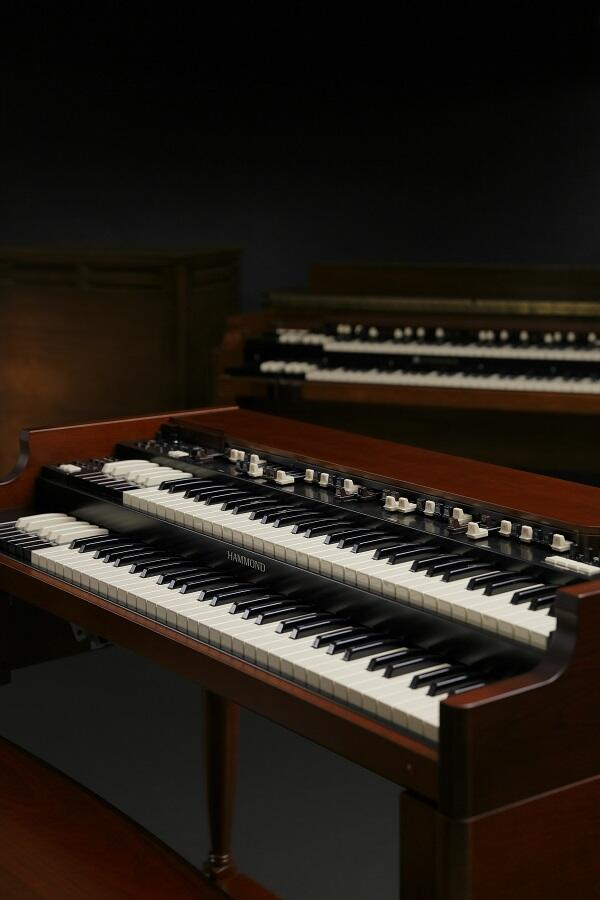

Hammond XK-5 - Det nye Hammond XK-5: et modulært instrument, der kan vokse fra et enkelt "keyboard" til et fuldt orgel som Hammond B-3 orgelet. I familie med B-3 MK2 (full-sized). Ved tryk på en tangent aktivere / lukker man 9 mekaniske kontakter (én for hver drawbar). Ørene hører normalt bare én tone og ikke rigtigt alle overtonerne, men presser man en tangent ned langsomt, så kan man høre alle harmonier (overtoner) - tidsmæssigt lidt forskudt (delay agtigt). Jo flere "drawbars" man trækker ud - jo mere "soul-agtig" bliver lyden. Super fedt hammond orgel med MIDI, USB til tilslutning af DAW´s. Der er mulighed for dobbelt-tangenter til XK-5 - Hammond XLK-5 (Lower manual).



  • Out of a total of more than 50 innovations and features, we here list the some of the most outstanding...
  • Four full sets of Harmonic Drawbars plus pedal drawbars.
  • 12 additional virtual tone wheels are devoted to pedal tones.
  • Custom tone wheel profiles available via download.
  • Our best-ever Digital Leslie effect.
  • Continuously variable Digital Leslie speed if desired.
  • Dedicated octave shift / transpose buttons.
  • Improved DSP-based overdrive complemented by vacuum tube preamp.
  • Improved vibrato-chorus.
  • Dedicated on/off and amount knobs for reverb, overdrive & assignable multi-FX.
  • Lower B drawbars can alternately control 9 MIDI CC messages for external gear.
  • Left and right ¼" outs can be used at the same time as Leslie output.
  • More key-triggering modes for pedal-to-lower coupler (Manual Bass function).
  • Firmware updatable via USB flash drive or directly from computer.
  • Crisp new OLED display is more readable under different lighting conditions.



Specifications
SOUND GENERATOR MTW I(Modelled Tone Wheel I)
61 polyphony (for manual)
3 polyphony (for pedal)
KEYBOARDS 73 (61 + 12 Preset Keys)
Water Fall type
Virtual Multi Contact
HARMONIC DRAWBARS Drawbars
- Upper: 2 x 9 Pitches
- Lower: 2 x 9 Pitches
- Pedal: 2 Pitches
Voicing
- Manuals: 4 choices (A-100, B-3, C-3, Mellow)
- Pedal: 4 choices (Normal, Muted, Synth1, Synth2)
- Virtual Multi Contact
TOUCH RESPONSE PERCUSSION Buttons
- Percussion On, Th ird Harmonic, Fast Decay, Volume Soft
Adjustable
- Touch, Velocity, Decay (Fast, Slow), Level (Normal, Soft)
EFFECTS Vibrato and Chorus
- Digital Scanner
Tube Pre-Amp
- Device: 12AX7, 12AU7
- Adjustable: Routing, Level
Overdrive
- Control: On, Depth
Multi Effects
- 8 programs
Equalizer
- Bass, Mid, Treble, Tone
Internal Leslie
- Advanced Digital, 2 Rotors
- Buttons: Bypass, Stop, Fast
Reverb
- Digital, 11 programs
- Control: On, Depth
- Leslie On Reverb
Master Equalizer
- Bass, Mid, Treble
KEYMAP Buttons
- Pedal To Lower, Split, Transpose, Octave Down, Octave Up, Lower
Adjustable
- Coupler Highest note, Split Point
PATCHES Capacity
- 100 User Patches, 100 Factory Patches, Adjust Preset A#/B
Favorites
- 10 Keys
Patch Load Options
- Drawbar Registration, Drawbar Parameters, Internal Zone, External
- Zone, Eff ects, Reverb
CONTROLLERS Volume
- Master Volume
Switch
- Power On/Off
STORAGE USB Flash Drive
DISPLAY 20 - Characters, 2 - Lines
7 Control Buttons and Value knob
MIDI Templates
- 5 Templates
Zones
- 3 External Zones (Upper)
- 2 External Zones (Lower)
- 1 External Zone (Pedal)
- and Keyboard Channels:
Upper, Lower, Pedal

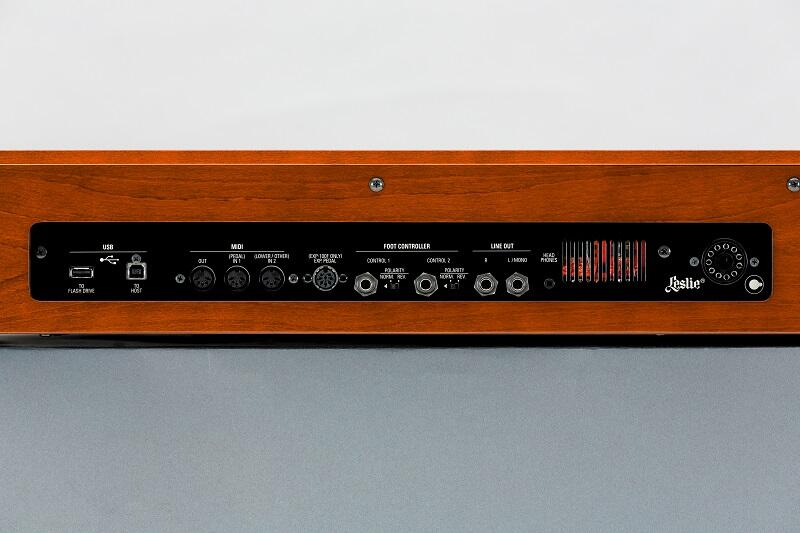

CONNECTIONS MIDI
- In (Pedal), In (Lower/Other), Out
USB
- To Host
H-Bus
- To Keyboard/Pedal (0.3A max)
Audio
- Line Out L/Mono, R, Headphones (Rear, Bottom)
Leslie
- 11 - pin, 1 and 3 channels available
Others
- Leslie Switch, Foot Controller 1, 2, Exp. Pedal, AC Inlet
DIMENSIONS
119(W), 40(D), 12(H) cm
WEIGHT
15.7 kg
Model/varenr.: XK-5
Vægt: 15,7 kg
