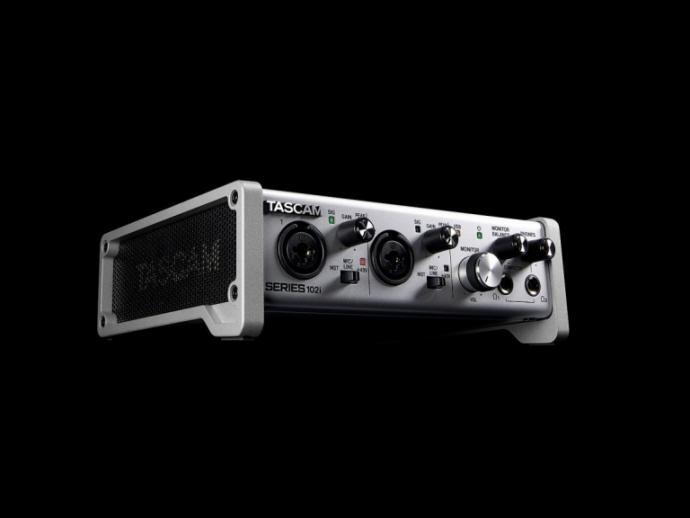

TASCAM 102I USB AUDIO/MIDI INTERFACE M/ DSP MIXER

2.295,00

TASCAM 102I USB AUDIO/MIDI INTERFACE M/ DSP MIXER - Perfekt til hjemmestudiet, guitarister / bassister / sangskrivere. Den kompakte SERIES 102i audio / MIDI interface giver op til ti lydindgange og to lydudgange til en Mac eller Windows-computer eller en iOS-enhed til optagelse og afspilning på op til 192 kHz / 24 bit og med den fantastiske lyd, man forventer af Tascam. Kraftfuld DSP input og output mixer med indbygget digital reverb, kompressor, fase inverter og 4-bånds EQ for hver kanal. Med den indbyggede DSP processor inkluderet, slipper man for at bruge computerkraft på f.eks. reverb, kompressor plug-ins og slipper for latency problemer.



Specs:

Provides up to ten audio inputs and two audio outputs to a Windows or Mac computer or iOS device
Audio resolution up to 192 kHz / 24 bit
USB Audio Compliance 2.0 for iOS connection

Hardware features

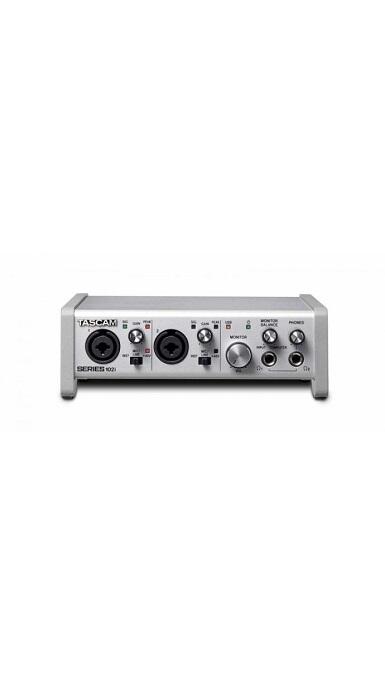

Two analogue mic/line inputs on XLR/TRS balanced combo connectors
High-grade Ultra-HDDA (High Definition Discrete Architecture) microphone pre-amps with ultra-low noise (EIN: –125 dBu)
High-quality audio input circuits for low-noise recording
Individually switchable 48-Volt phantom power on XLR inputs
Each TRS input can be switched to instrument-level for direct recording of guitar or bass
Gain controls, signal and peak indicators on each analogue input
Optical audio input supporting S/MUX for high sampling rates 8 inputs at 44.1/48 kHz
4 inputs at 88.2/96 kHz
2 inputs at 176.4/192 kHz

Two monitor/line outputs (balanced TRS) with level control
Direct monitor option for low-latency monitoring
Monitor mix control for adjusting the level balance between signals from external devices and signals from the computer
Two 6.3-mm standard headphones outputs with level control (18 mW per channel)

  • MIDI input, MIDI output
  • Power supply by dedicated PS-P1220E AC adapter (included)
  • Rugged all-metal chassis

Software features

  • In-house developed driver for Windows devices ensures stable operation with low latency

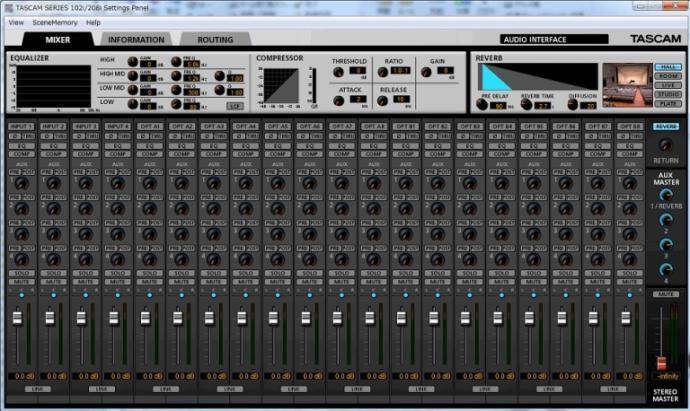

  • Built-in DSP with mixer, routing and effects accessible through dedicated settings panel
    • Compressor and 4-band EQ with low-cut filter on each input channel
    • Phase invert, Bypass, Solo, channel Link and Mute buttons on each input channel
    • Four Aux sends, switchable pre/post (Aux 1 used for internal reverb)
    • Reverb effect with five presets and adjustable pre delay, reverb time, diffusion and return level (Reverb can be used up to 96 kHz only)
    • Master section with Stereo fader, Aux Master controls and Mute button

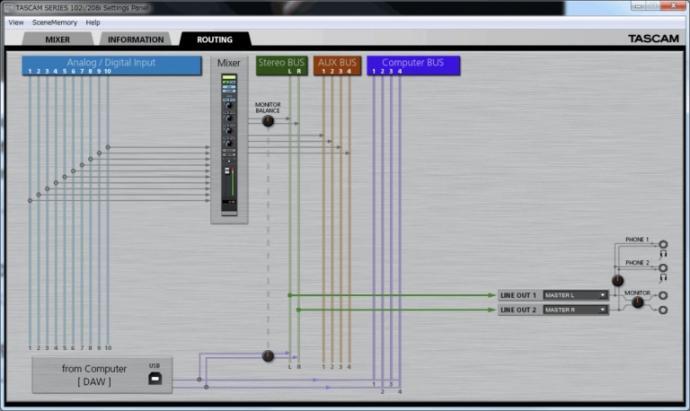

    • Comfortable routing of output channels
  • Bundled with Cubase LE 9.5 (64-bit Windows application), compatible with Cubasis LE2
  • Bundled with several plug-in effects
  • Automatic update function available for software, driver and firmware updates
  • Compatible with major DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand etc.)

Specifications


General ratings

Sampling frequencies   44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Quantization bit depth   16/24-bit


Analogue audio inputs

Mic inputs (when the input switch set to MIC/LINE)   XLR-3-31 (1: GND, 2: HOT, 3: COLD)
  Input impedance   1.5 kΩ
  Nominal input level   −63 dBu (0.00055 Vrms, gain knob max.)
−6 dBu (0.195 Vrms, gain knob min.)
  Maximum input level   +10 dBu (2.45 Vrms)
  Maximum gain   57 dB
Instrument inputs (when the input switch is set to INST)   6.3-mm standard TS jack
(Tip: HOT, Sleeve: GND)
  Input impedance   ≥1 MΩ
  Nominal input level   −63 dBV (0.0007 Vrms, gain knob max.)
−6 dBV (0.501 Vrms, gain knob min.)
  Maximum input level   +10 dBV (3.162 Vrms)
  Maximum gain   57 dB
Line inputs (when the input switch set to MIC/LINE)   6.3-mm TRS jack
(Tip: HOT, Ring: COLD, Sleeve: GND)
  Input impedance   10 kΩ
  Nominal input level   −53 dBu (0.0022 Vrms, gain knob max.)
+4 dBu (1.228 Vrms, gain knob at min.)
  Maximum input level   +24 dBu (12.282 Vrms)
  Maximum gain   57 dB

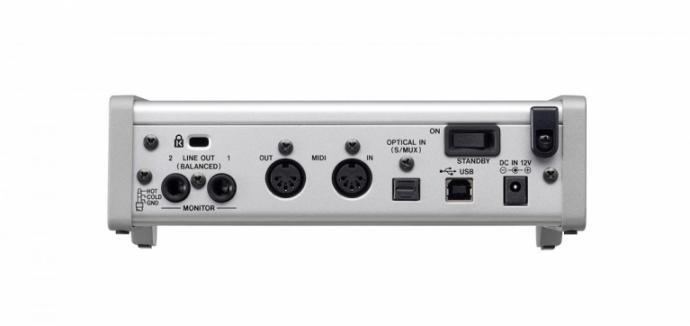

Analogue audio outputs

Line outputs (balanced)   6.3-mm TRS jack
(Tip: HOT, Ring: COLD, Sleeve: GND)
  Output impedance   230 Ω
  Nominal output level   +4 dBu (1.228 Vrms)
  Maximum output level   +20 dBu (7.75 Vrms)
Headphone outputs (PHONES)   Standard 6.3-mm stereo jack
  Maximum output power (THD+N ≤0,1 %, 32 Ω)   18 mW + 18 mW


Digital audio inputs/outputs

OPTICAL IN (S/MUX) connector(s)   Optical (JEITA RC-5720C)
  Signal format   Multi-channel optical format
(Supports S/MUX when 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz.)


Other inputs and outputs

USB   4-pin USB B-type
  Transfer rate   USB 2.0 Hi-speed (480 MBit/s)
MIDI input   5-pin DIN
  Format   Standard MIDI format
MIDI output   5-pin DIN
  Format   Standard MIDI


Audio performance

Mic amp EIN (equivalent input noise)   ≤−127 dBu
Frequency response (input to line output)
  At 44.1/48 kHz   20 Hz – 20 kHz, +0/–1 dB (JEITA)
  At 88.2/96 kHz   20 Hz – 40 kHz, +0/–2 dB (JEITA)
  At 176.4/192 kHz   20 Hz – 80 kHz, +0/–10 dB (JEITA)
S/N ratio   ≥106 dB
(MIC/LINE input to LINE output 1-2, gain knob at minimum, JEITA)
Distortion   ≤0.005 %
(MIC/LINE input to LINE output 1-2, 1 kHz sine wave, −2 dBFS input level, MONITOR knob at maximum)
Crosstalk   ≥95 dB
(MIC/LINE input to LINE output 1-2, 1 kHz sine wave, gain knob at minimum)


Computer system requirements

Windows
  Supported operating systems   Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 7 32-bit SP1 or later
Windows 7 64-bit SP1 or later
(Windows Vista and Windows XP are not supported)
  Computer hardware requirements   Windows computer with a USB port that supports at least USB 2.0 or USB 3.0
  CPU/processor speed   2 GHz or faster dual core processor (x86)
  Memory   2 GB or more
Mac
  Supported operating systems   macOS Mojave (10.14 or later)
macOS High Sierra (10.13 or later)
macOS Sierra (10.12 or later)
  Computer hardware requirements   Mac with a USB port that supports at least USB 2.0 or USB 3.0
  CPU/processor speed   2 GHz or faster dual core processor
  Memory   2 GB or more
iOS device   Apple iOS device running iOS 10 or later
Supported audio drivers   Windows: USB Audio Class 2.0, ASIO 2.2, WDM (MME), MIDI
Mac: Core Audio, Core MIDI
iOS device: Core Audio for iPhone


Power supply and other specifications

Power   DC 12 V AC adapter (PS-P1220E)
Power consumption   7.2 W
Dimensions (W × H × D)   186 mm × 65 mm × 160 mm
Weight   0.9 kg
Permissible operating temperature range   5–35 °C

Model/varenr.: TAS-102I
Vægt: 0,9 kg

Levering, Fragt, Returret

Andre købte også

Specifications

General ratings
Sampling frequencies   44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Quantization bit depth   16/24-bit
Analogue audio inputs
Mic inputs (when the input switch set to MIC/LINE)   XLR-3-31 (1: GND, 2: HOT, 3: COLD)
  Input impedance   1.5 kΩ
  Nominal input level   −64 dBu (0.0005 Vrms, GAIN knob at MAX)
−6 dBu (0.388 Vrms, GAIN knob at MIN)
  Maximum input level   +10 dBu (2.45 Vrms)
  Maximum gain   58 dB
Instrument inputs (when the input switch is set to INST)   6.3-mm standard TS jack
(Tip: HOT, Sleeve: GND)
  Input impedance   ≥1 MΩ
  Nominal input level   −64 dBV (0.0006 Vrms, GAIN knob at MAX)
−6 dBV (0.501 Vrms, GAIN knob at MIN)
  Maximum input level   +10 dBV (3.162 Vrms)
  Maximum gain   58 dB
Line inputs (when the input switch set to MIC/LINE)   6.3-mm TRS jack
(Tip: HOT, Ring: COLD, Sleeve: GND)
  Input impedance   10 kΩ
  Nominal input level   −54 dBu (0.0015 Vrms, GAIN knob at MAX)
+4 dBu (1.228 Vrms, GAIN knob at MIN)
  Maximum input level   +24 dBu (12.282 Vrms)
  Maximum gain   58 dB
Analogue audio outputs
Line outputs (balanced)   6.3-mm TRS jack
(Tip: HOT, Ring: COLD, Sleeve: GND)
  Output impedance   230 Ω
  Nominal output level   +4 dBu (1.228 Vrms)
  Maximum output level   +20 dBu (7.75 Vrms)
Headphone outputs (PHONES)   Standard 6.3-mm stereo jack
  Maximum output power (THD+N ≤0,1 %, 32 Ω)   18 mW + 18 mW
Digital audio inputs/outputs
OPTICAL IN (S/MUX) connector(s)   Optical (JEITA RC-5720C)
  Signal format   Multi-channel optical format
(Supports S/MUX when 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz.)
Other inputs and outputs
USB   4-pin USB B-type
  Transfer rate   USB 2.0 Hi-speed (480 MBit/s)
MIDI input   5-pin DIN
  Format   Standard MIDI format
MIDI output   5-pin DIN
  Format   Standard MIDI
Audio performance
Mic amp EIN (equivalent input noise)   ≤−129 dBu
Frequency response (mic/line input to computer)
  At 44.1/48 kHz   20 Hz – 20 kHz, +0/–0.4 dB (JEITA)
  At 88.2/96 kHz   20 Hz – 40 kHz, +0/–0.8 dB (JEITA)
  At 176.4/192 kHz   20 Hz – 80 kHz (JEITA)
S/N ratio   109 dB
(Mic input to Computer, Gain knob at minimum, 20-kHz low-pass filter, A-weighted)
110 dB
(Computer to Line output, MONITOR knob at maximum, 20-kHz low-pass filter, A-weighted)
Distortion (THD + N)   0,0016 %
(Mic input to Computer, 1 kHz sine wave, Gain knob at minimum, 20-kHz low-pass filter)
0,0023 %
(Line input to Computer, 1 kHz sine wave, Gain knob at minimum, 20-kHz low-pass filter)
0,0014 %
(Computer to Line output, 1 kHz sine wave, MONITOR knob at maximum, 20-kHz low-pass filter)
Crosstalk   ≥100 dB
(MIC/LINE input to LINE output 1-2, 1 kHz sine wave, gain knob at minimum)
Computer system requirements
Windows
  Computer hardware requirements   Windows computer with a USB port that supports at least USB 2.0 or USB 3.0
  CPU/processor speed   2 GHz or faster dual core processor (x86)
  Memory   2 GB or more
Mac
  Computer hardware requirements   Mac with a USB port that supports at least USB 2.0 or USB 3.0
  CPU/processor speed   2 GHz or faster dual core processor
  Memory   2 GB or more
iOS device   Apple iOS device running iOS 10 or later
Supported audio drivers   Windows: USB Audio Class 2.0, ASIO 2.2, WDM (MME), MIDI
Mac: Core Audio, Core MIDI
iOS device: Core Audio for iPhone
Power supply and other specifications
Power   DC 12 V AC adapter (PS-P1220E)
Power consumption   7.2 W
Dimensions (W × H × D)   186 mm × 65 mm × 160 mm
Weight   1.1 kg
Permissible operating temperature range   5–35 °C

Design and specifications subject to change without notice.
