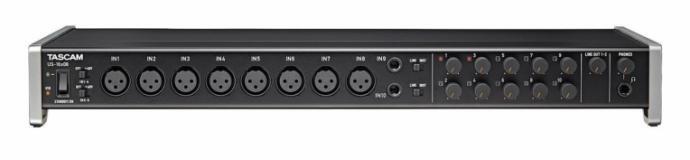

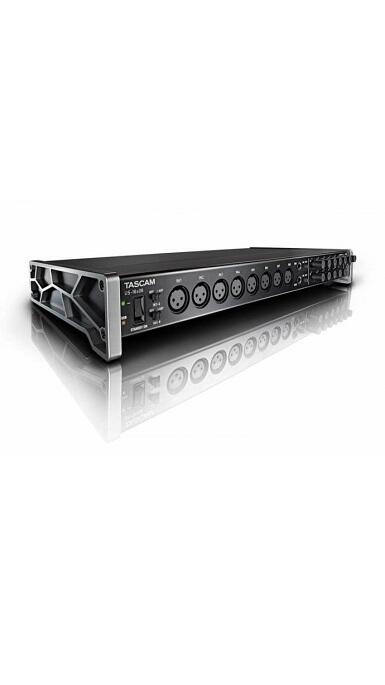

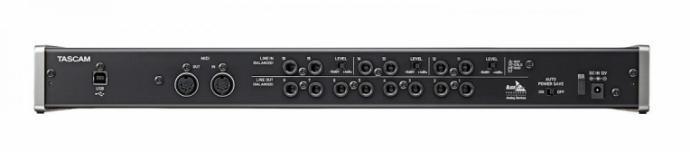

TASCAM US-16X08 USB 2.0 AUDIO INTERFACE **UDSOLGT**

1.920,00

TASCAM US-16X08 USB 2.0 AUDIO INTERFACE - US-16x08 tilbyder 16 mikrofon- og line-inputs til computeren. Super klar lydkvalitet og avancerede egenskaber til håndtering af store sessioner. Otte Ultra-HDDA mikrofon-preamps giver en ren og stille drift, mens den leverer op til 56 dB gain. Otte ekstra balancerede line-inputs er til rådighed, to af dem omstillelige til instrument-niveau til direkte guitar eller basoptagelser. Otte balancerede line-outputs er også tilgængelige, to med niveau-kontrol på frontpanelet. US-16x08 har en indbygget DSP-mixer til low-latency digital-mixing. Hver kanal tilbyder en 4-bånds EQ og kompression. Udover interface-tilstanden kan US-16x08 også bruges som en mikrofon-preamp. Enheden understøtter Windows og Mac-drivers, såvel som USB Class Compliant 2.0 drivers til tablets som Apple iPad. MIDI-input og output er også tilgængeligt på bagpanelet.

Specs:

Sampling frequencies: 44.1/48/88.2/96 kHz
Quantization bit depth: 16-bit or 24-bit
Mic inputs 1-8 (balanced): XLR-3-31 (1: GND, 2: HOT, 3: COLD)
  Input impedance: 2.4 kΩ
  Rated input level: -68 dBu (0.0003 Vrms, gain knob max.)
  Rated input level: -12 dBu (0.195 Vrms, gain knob min.)
  Maximum input level: +8 dBu (1.947 Vrms)
  Maximum gain: 56 dB
Instrument inputs 9–10 (unbalanced, LINE/INST switch set to INST): 6.3 mm standard TS jacks (Tip: Hot, Sleeve: GND)
  Input impedance: 1 MΩ or more
  Rated input level: -57 dBV (0.0014 Vrms, gain knob max.)
  Rated input level: -12 dBV (0.251 Vrms, gain knob min.)
  Maximum input level: +8 dBV (2.512 Vrms)
  Maximum gain: 45 dB
Line inputs 9–10 (unbalanced, LINE/INST switch set to LINE): Standard TRS jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
  Input impedance: 10 kΩ
  Rated input level: -41 dBu (0.0069 Vrms, gain knob max.)
  Rated input level: +4 dBu (1.228 Vrms, gain knob min.)
  Maximum input level: +24 dBu (12.282 Vrms)
  Maximum gain: 45 dB
Line inputs 11–16 (unbalanced, LEVEL switch set to -10 dBV): 6.3 mm standard TS jacks (Tip: Hot, Sleeve: GND)
  Input impedance: 10 kΩ
  Rated input level: -10 dBV (0.3162 Vrms)
  Maximum input level: +10 dBV (3.162 Vrms)
Line inputs 11–16 (balanced, LEVEL switch set to +4 dBu): Standard TRS jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
  Input impedance: 10 kΩ
  Rated input level: +4 dBu (1.228 Vrms)
  Maximum input level: +24 dBu (12.282 Vrms)
Line outputs 1–8 (balanced): Standard TRS jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
  Output impedance: 100 Ω
  Rated output level: +4 dBu (1.228 Vrms)
  Maximum output level: +24 dBu (12.277 Vrms)
Headphones output: 6.3 mm standard stereo jack
  Maximum output power: 70 mW + 70 mW (THD+N ≤1 %, 32 Ω)
  Frequency response (input to headphones output): At 44.1 kHz and 48 kHz: 20 Hz – 20 kHz, ±1.0 dB (JEITA), At 88.2 kHz and 96 kHz: 20 Hz – 40 kHz, ±2.0 dB (JEITA)
MIDI input: 5-pin DIN connector
  Format: Standard MIDI format
MIDI output: 5-pin DIN connector
  Format: Standard MIDI format
USB: 4-pin USB B-type
  Transfer rate: USB 2.0 High Speed (480 MBit/s)
Mic preamp EIN (equivalent input noise): -125 dBu or more
Frequency response (input to line output)
  At 44.1 kHz and 48 kHz: 20 Hz – 20 kHz, ±0.5 dB (JEITA)
  At 88.2 kHz and 96 kHz: 20 Hz – 40 kHz, ±0.5 dB (JEITA)
S/N ratio: 100 dB or higher (line input to line output, gain knob at minimum, JEITA)
Distortion: 0.006% or less (mic/line input to line output, 1 kHz sine wave, nominal input level, maximum output level)
Crosstalk: 100 dB or higher (mic/line input to line output, 1 kHz)
Windows
  Supported operating systems: Windows 10 32/64-bit, Windows 8 (including 8.1) 32/64-bit, Windows 7 32/64-bit SP1 or later
  Computer hardware requirements: Windows computer with a USB 2.0 or USB 3.0 port, 2 GHz or faster dual core processor (x86), 2 GB or more memory, Display resolution at least 1280 x 800 px
  Supported audio drivers: ASIO 2.0, WDM (MME)
  Important: Operation of this unit was confirmed using standard computers that meet the above requirements. This does not guarantee operation with all computers that meet the above requirements. Even computers that meet the same system requirements might have processing capabilities that differ according to their settings and other operating conditions.
Mac OS X
  Supported operating systems: El Capitan (10.11.2 or later), Yosemite (10.10 or later), Mavericks (10.9.1 or later), Mountain Lion (10.8.4 or later)
  Computer hardware requirements: Apple Mac computer with a USB 2.0 or USB 3.0 port, 2 GHz or faster dual core processor, 2 GB or more memory, Display resolution at least 1280 x 800 px
  Supported audio drivers: Core Audio, Core MIDI
Supported iOS devices: iPad (4th generation), iPad Air, iPad mini, iPhone
Power supply: Specialized AC adapter (GPE248-120200-Z)
Power consumption: 12 W
External dimensions: 445 x 59 x 219 mm
Weight: 2.8 kg
Operating temperature range: 5–35 °C

Model/varenr.: US-16x08
Vægt: 2,8 kg

Levering, Fragt, Returret

Andre købte også

Specifications

Digital conversion
Sampling frequencies   44.1/48/88.2/96 kHz
Quantization bit depth   16-bit or 24-bit
Analogue audio inputs
Mic inputs 1-8 (balanced)   XLR-3-31 (1: GND, 2: HOT, 3: COLD)
  Input impedance   2.4 kΩ
  Rated input level   −68 dBu (0.0003 Vrms, gain knob max.)
  Rated input level   −12 dBu (0.195 Vrms, gain knob min.)
  Maximum input level   +8 dBu (1.947 Vrms)
  Maximum gain   56 dB
Instrument inputs 9–10 (unbalanced, LINE/INST switch set to INST)   6.3mm standard TS jacks
(Tip: Hot, Sleeve: GND)
  Input impedance   1 MΩ or more
  Rated input level   −57 dBV (0.0014 Vrms, gain knob max.)
  Rated input level   −12 dBV (0.251 Vrms, gain knob min.)
  Maximum input level   +8 dBV (2.512 Vrms)
  Maximum gain   45 dB
Line inputs 9–10 (unbalanced, LINE/INST switch set to LINE)   Standard TRS jack, balanced
(Tip: HOT, Ring: COLD, Sleeve: GND)
  Input impedance   10 kΩ
  Rated input level   −41 dBu (0.0069 Vrms, gain knob max.)
  Rated input level   +4 dBu (1.228 Vrms, gain knob min.)
  Maximum input level   +24 dBu (12.282 Vrms)
  Maximum gain   45 dB
Line inputs 11–16 (unbalanced, LEVEL switch set to −10 dBV)   6.3mm standard TS jacks
(Tip: Hot, Sleeve: GND)
  Input impedance   10 kΩ
  Rated input level   −10 dBV (0.3162 Vrms)
  Maximum input level   +10 dBV (3.162 Vrms)
Line inputs 11–16 (balanced, LEVEL switch set to +4 dBu)   Standard TRS jack, balanced
(Tip: HOT, Ring: COLD, Sleeve: GND)
  Input impedance   10 kΩ
  Rated input level   +4 dBu (1.228 Vrms)
  Maximum input level   +24 dBu (12.282 Vrms)
Analogue audio outputs
Line outputs 1–8 (balanced)   Standard TRS jack, balanced
(Tip: HOT, Ring: COLD, Sleeve: GND)
  Output impedance   100 Ω
  Rated output level   +4 dBu (1.228 Vrms)
  Maximum output level   +24 dBu (12.277 Vrms)
Headphones output   6.3-mm standard stereo jack
  Maximum output power   70 mW + 70 mW (THD+N ≤1 %, 32 Ω)
  Frequency response (input to headphones output)   At 44.1 kHz and 48 kHz:
20 Hz – 20 kHz, ±1.0 dB (JEITA)
At 88.2 kHz and 96 kHz:
20 Hz – 40 kHz, ±2.0 dB (JEITA)
Other inputs/outputs
MIDI input   5-pin DIN connector
  Format   Standard MIDI format
MIDI output   5-pin DIN connector
  Format   Standard MIDI format
USB   4-pin USB B-type
  Transfer rate   USB 2.0 High Speed (480 MBit/s)
Audio performance
Mic preamp EIN (equivalent input noise)   −125 dBu or more
Frequency response (input to line output)
  At 44.1 kHz and 48 kHz   20 Hz – 20 kHz, ±0.5 dB (JEITA)
  At 88.2 kHz and 96 kHz   20 Hz – 40 kHz, ±0.5 dB (JEITA)
S/N ratio   100 dB or higher
(line input to line output, gain knob at minimum, JEITA)
Distortion   0.006% or less
(mic/line input to line output, 1 kHz sine wave, nominal input level, maximum output level)
Crosstalk   100 dB or higher
(mic/line input to line output, 1 kHz)
Computer system requirements
Windows
  Computer hardware requirements   Windows computer with a USB 2.0 or USB 3.0 port
2 GHz or faster dual core processor (x86)
2 GB or more memory
Display resolution at least 1280 x 800 px
  Supported audio drivers   ASIO 2.0, WDM (MME)
  Important: Operation of this unit was confirmed using standard computers that meet the above requirements. This does not guarantee operation with all computers that meet the above requirements. Even computers that meet the same system requirements might have processing capabilities that differ according to their settings and other operating conditions.
Mac
  Computer hardware requirements   Apple Mac computer with a USB 2.0 or USB 3.0 port
2 GHz or faster dual core processor
2 GB or more memory
Display resolution at least 1280 x 800 px
  Supported audio drivers   Core Audio, Core MIDI
Power supply and other specifications
Power supply   Specialized AC adapter (GPE248-120200-Z)
Power consumption   12 W
External dimensions   445 mm × 59 mm × 219 mm
Weight   2.8 kg
Operating temperature range   5–35 °C

For mere information, besøg dette produkts hjemmeside.
