SPECIFIKATION

Configuration: 2-Way

System type: Active Studio Monitor

Low-Frequency Transducer: 5" Glass Aramid Woofer

High-Frequency Transducer: 1" Textile Soft Dome Tweeter

Frequency Response (+/- 3dB): 56Hz - 30kHz

Frequency Range (-10dB): 46Hz - 34.5kHz

Crossover Frequency: 2.6kHz

Average Beamwidth (Horizontal): 133 Degrees (900 Hz — 9 kHz)

Average Beamwidth (Vertcal): 90 Degrees (900 Hz — 9 kHz)

Max Peak SPL (With Limiter): 101 dB

Max Average SPL (With Limiter): 98 dB

Max Calculated SPL: 99 dB

Amplifiers: Class A-B

High Frequency Power Output (Watts): 20 Watts

Low Frequency Power Output (Watts): 30 Watts

Amplifier Distortion (THD+N): < 0.1% THD+N 20 Hz — 20 kHz (-3 dB Max Power)

Input Impedance (Ohms): 10 KΩ Balanced / 7 KΩ Unbalanced

Input Sensitivity: 0 dBu Balanced / -15 dBV Unbalanced

SNR (Signal to Noise Ratio): > 94 dB

Controls: System Volume -30 dB - +6 dB

LF Level Adjust: (-1 dB, FLAT, +1 dB, +2 dB) Below 200 Hz

HF Level Adjust: (-2 dB, -1 dB, FLAT, +1 dB) Above 2.6 kHz

Indicators: Power

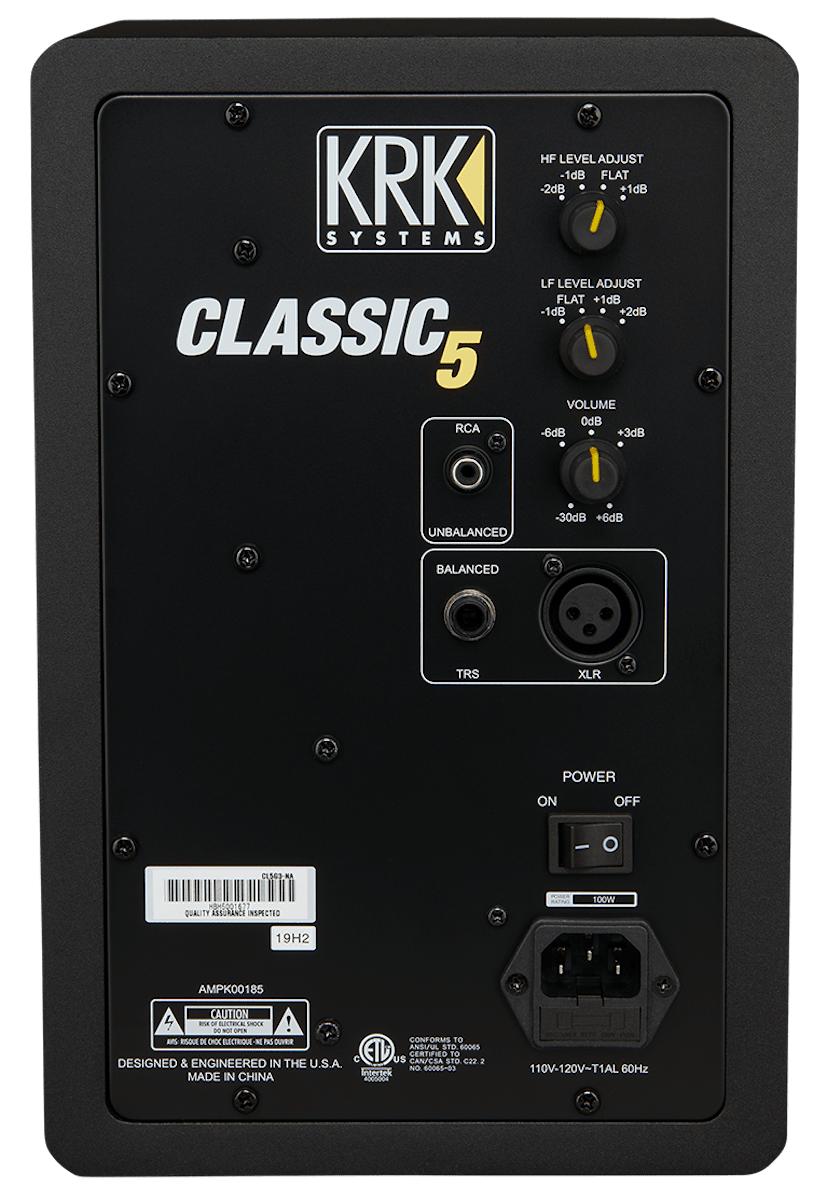

Input Connectors: RCA, Balanced 1/4" TRS, Balanced XLR

Ouput Connectors: N/A

AC Fuse (Slow Blow / Time Lag): 120 VAC (T1AL, 250 V) 240 VAC (T500mAL, 250 V)

Idle (Mute) AC Power Consumption: 14 Watts (NA SKU)

Idle (Standby) AC Power Consumption: < 0.5 Watts

Maximum AC Power Consumption: 79 Watts (NA SKU)

Enclosure Construction: 15 mm MDF / High Impact Polystyrene

Finish: Black Vinyl Wrap

Grille: N/A

Hardware: Foam Isolation Pads

Product Dimensions (H x W x D): 11.20" (332 mm) x 7.40" (226 mm) x 9.68" (290 mm)
