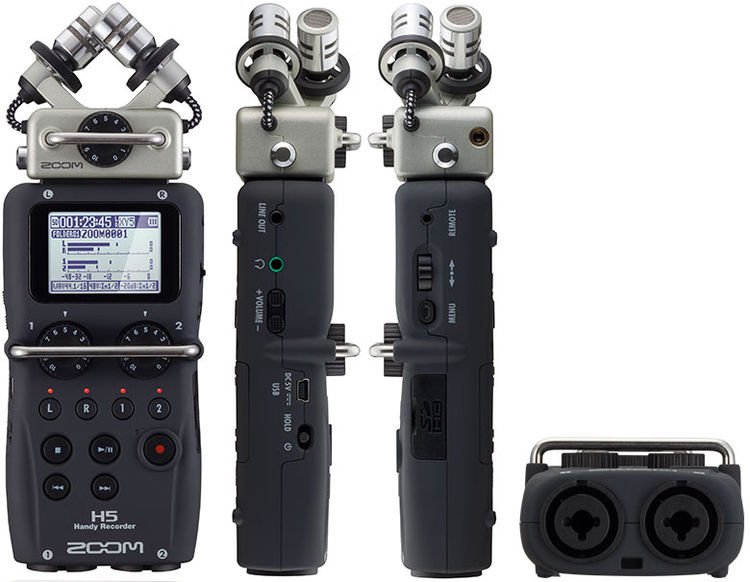

Zoom H5 optager

2.195,00

En af Zoom´s eksklusive mobil lyd-optager med udskiftelige mikrofoner (ekstra tilbehør). Den har op til 4 spors indspilning samtidig, support af SD og SDHC kort op til 32GB. Leveres inklusive XYH-5 X/Y mikrofon.

Model/varenr.: H5

Levering-Osv.

Andre købte også
SPECS:
Recording media:

SD card: 16MB to 2GB , SDHC card: 4GB to 32GB

Display:

Backlit LCD (128 x 64 pixels)

INPUTS
INPUTS L/R [XYH-5 X/Y mic]:

Mic type:   Unidirectional
Sensitivity:   -45 dB, 1 kHz at 1 Pa
Input gain:   -∞ to 52 dB
Max sound pressure input: 140 dB SPL

MIC/LINE IN :

Connector:   1/8" stereo mini jack
Input gain:  - ∞ to 52 dB
Input impedance:  2 k Ω or more
Plug-in power:  2.5V supported
Backup recording: -12dB lower than set L/R input gain

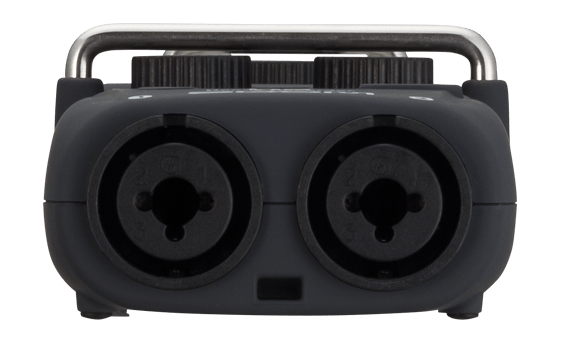

INPUTS 1/2:

Connectors:    XLR / TRS combo jacks
    (XLR: Pin 2 hot / TRS: Tip hot)
Input gain (PAD OFF): -∞ to 55.0 dB
Input gain (PAD ON): -∞ to 35.0 dB
Input impedance:  1.8 k Ω or more
Max input level:  +22 dBu (PAD ON)
Phantom power:  +12V /+24V /+48V
Equivalent Input Noise (EIN): -120 dBu or less

OUTPUTS
LINE OUT :

Connector:    1/8" stereo mini jack
Rated output level:   -10 dBm
Output load impedance: 10k Ω or more

PHONE OUT :

Connector:    1/8" stereo mini jack
Output Level:    20 W +20 W into 32 Ω load

Built-in speaker:

400mw 8 Ω mono

RECORDING FORMATS
STEREO MODE:

WAV (BWF-compliant)
Sampling frequency:   44.1/48/96 kHz
Bit rate:    16/24 (Stereo)
Maximum simultaneous recording tracks: 2

MP3
Sampling frequency:  44.1kHz
Bit rate: 48/56/64/80/96/112/32/160/192/224/256/320kbps

MULTITRACK MODE:

WAV (BWF-compliant)
Sampling frequency: 44.1/48 kHz
Bit rate: 16/24 (Mono/Stereo)
Maximum simultaneous recording tracks: 6 (L/R + INPUT 1/2 + L/R backup)

USB
Mass Storage Class operation:

Class: USB 2.0 High Speed

Audio Interface operation: Multitrack mode:

Class: USB 2.0 High Speed
Sampling frequency: 44.1/48kHz
Bit rate: 16/24 bit
Inputs / Outputs: 4 / 2

Audio Interface operation: Stereo mode:

Class: USB 2.0 Full Speed
Sampling frequency: 44.1/48kHz
Bit rate:  16 bit
Inputs / Outputs: 2 / 2

USB bus powered operation  possible
(iPad operation supported in Stereo mode only)

POWER REQUIREMENTS


AA size (LR6) battery x 2
AC adapter: AD-17 (DC5V/1A/USB-type) (optional)
USB bus power



For mere information, besøg dette produkts hjemmeside.
