Fra: Omnitronic

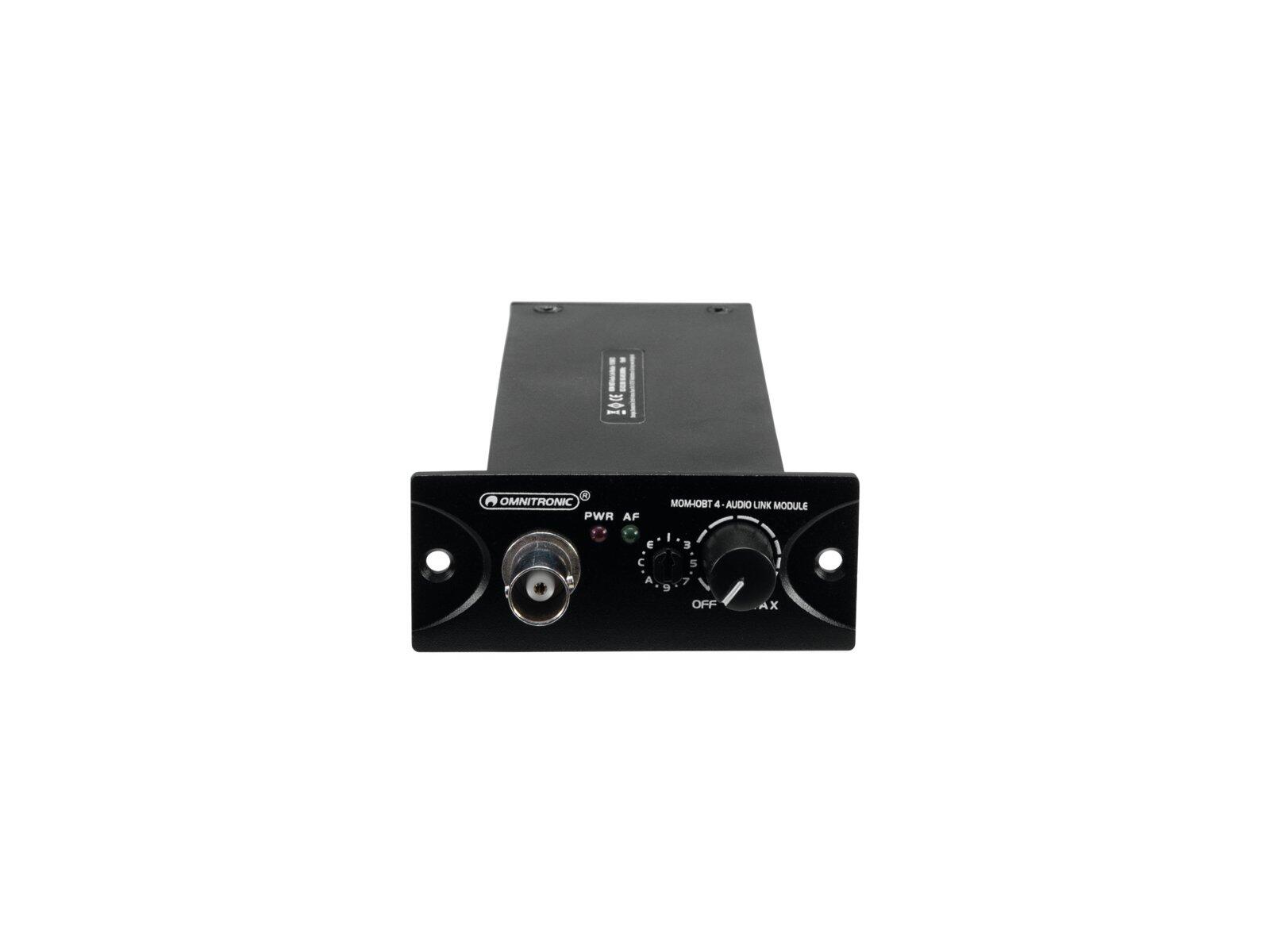

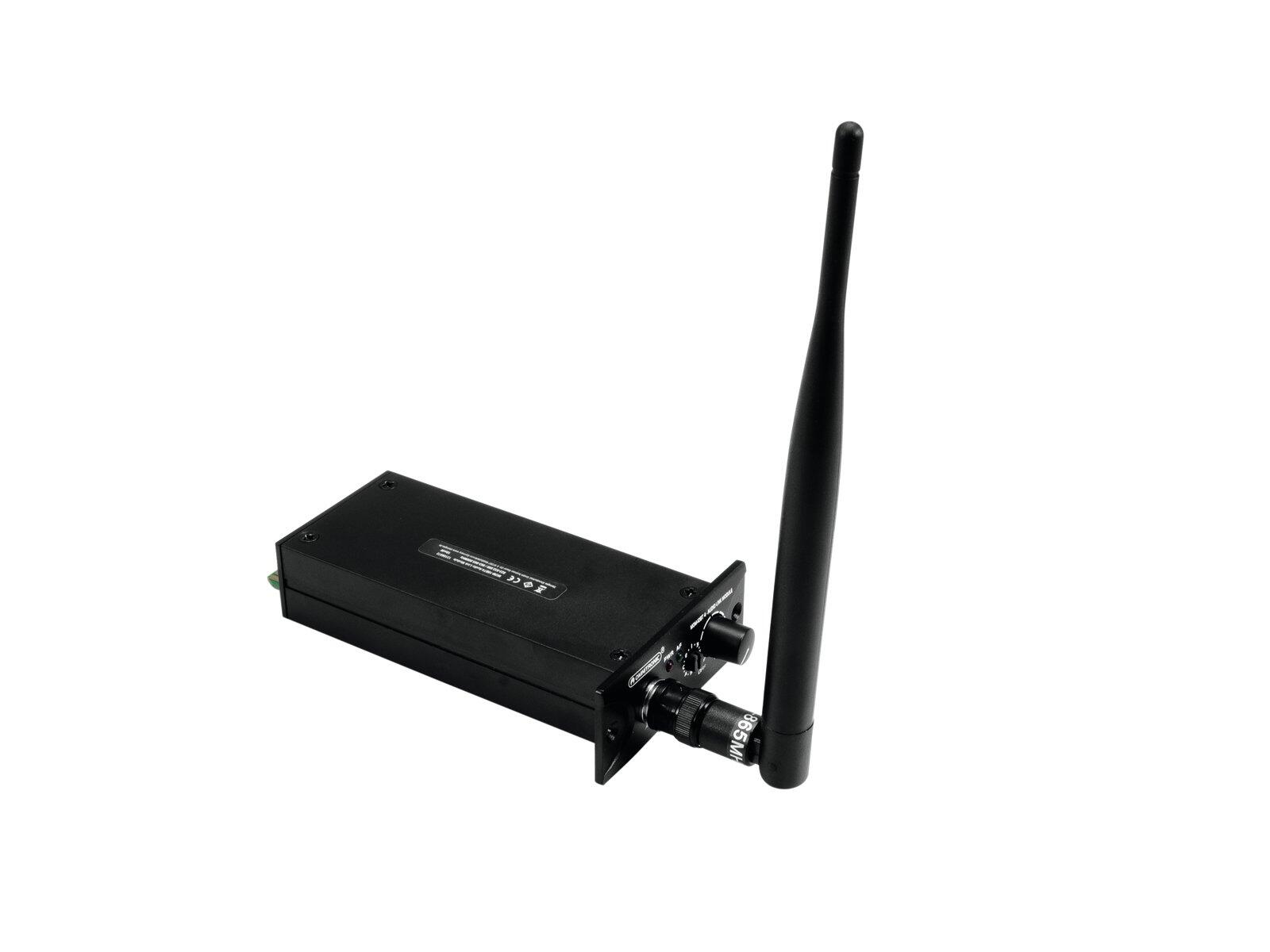

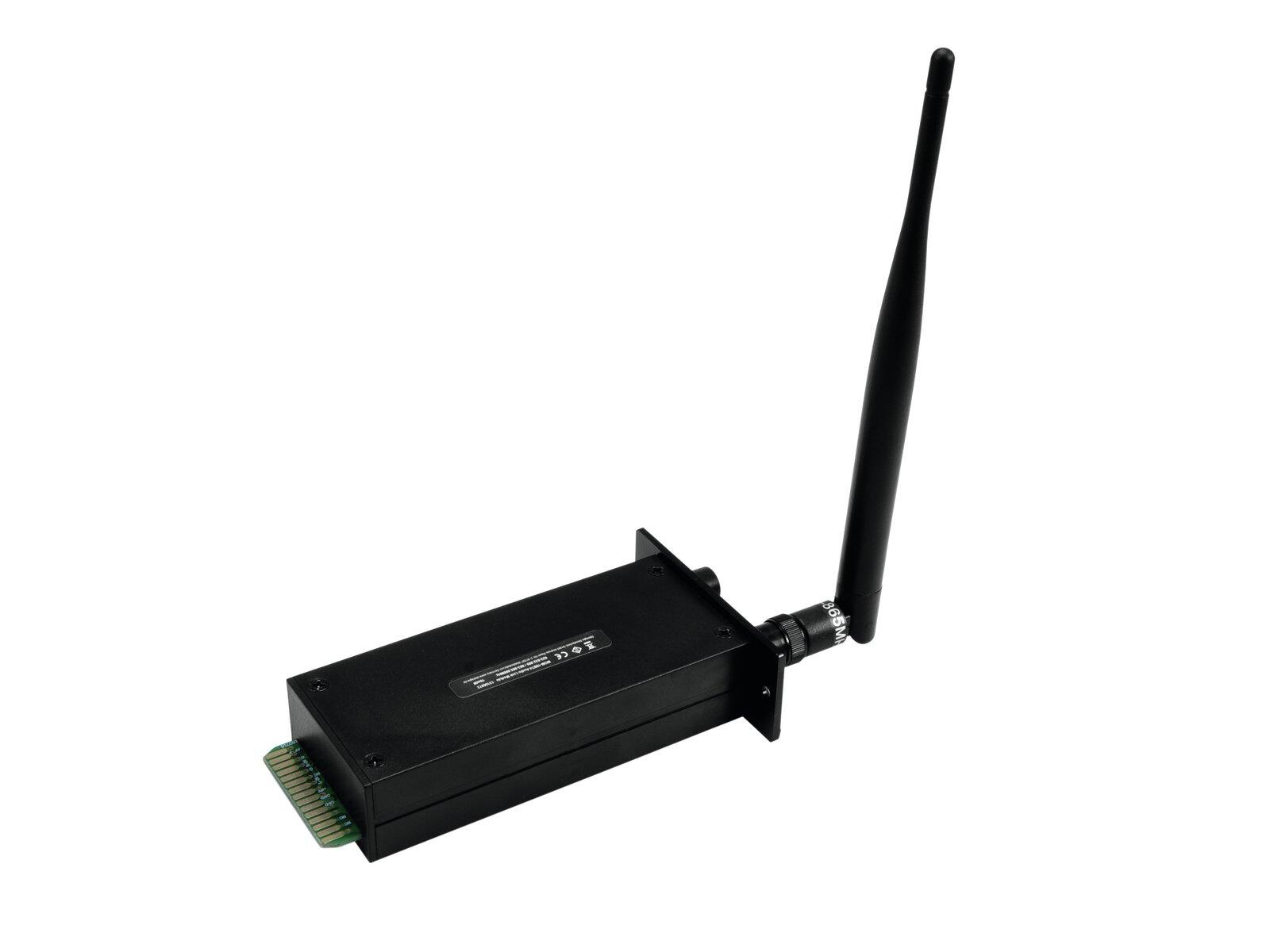

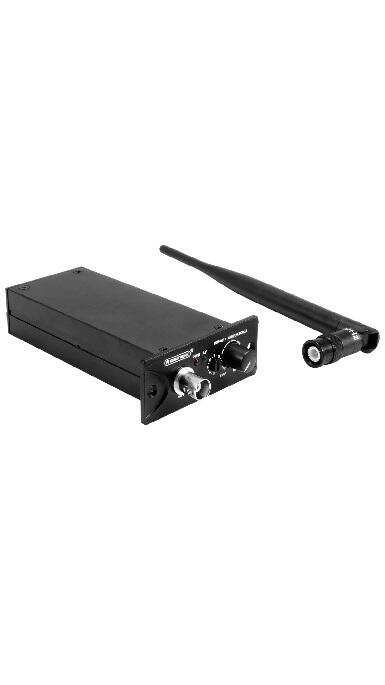

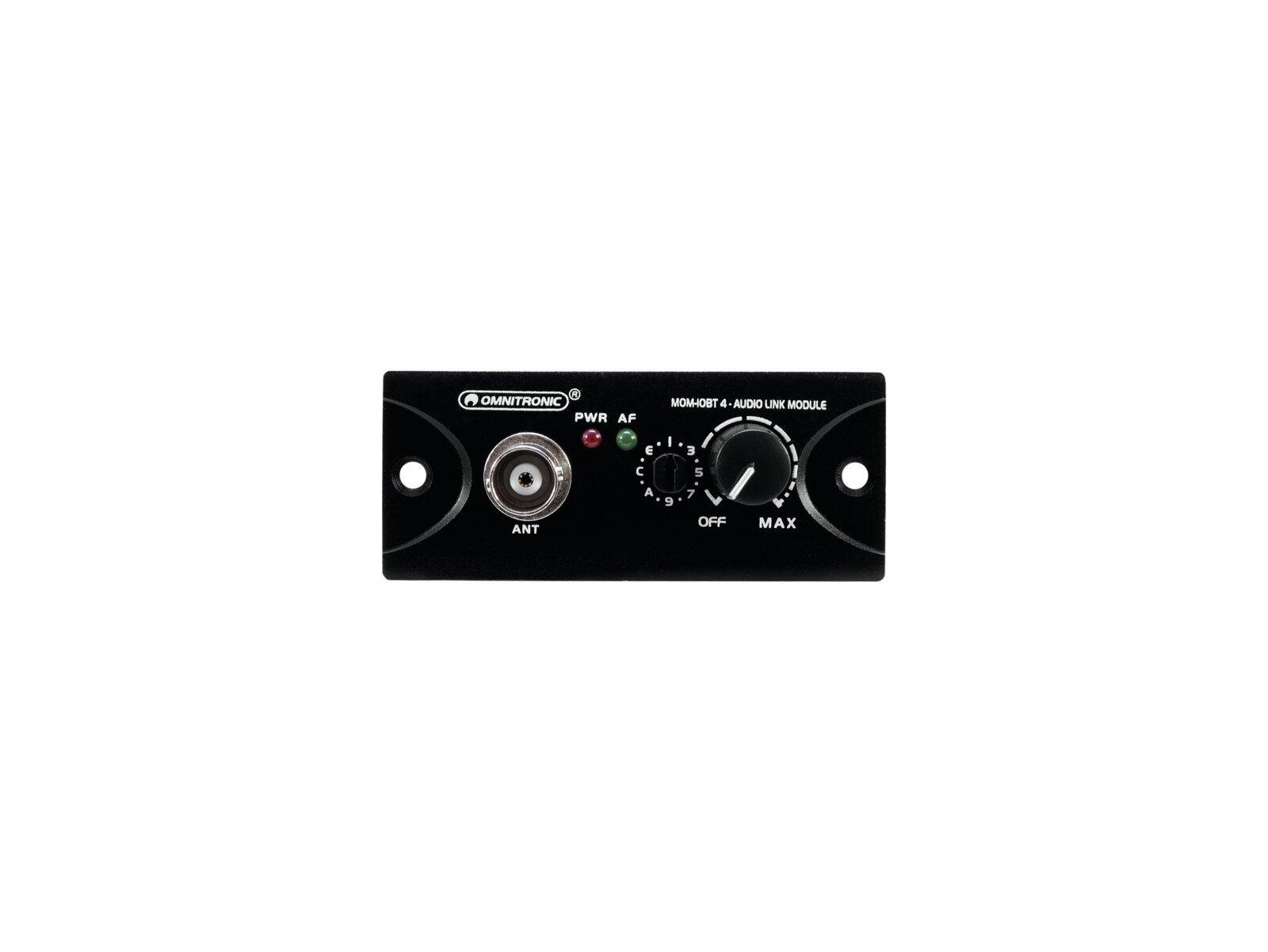

OMNITRONIC MOM-10BT4 - Audio Link Module

395,00

OMNITRONIC MOM-10BT4 - Audio Link Module - Audio modul der passer til MOM-10BT4 - Modtager til at sende audio-signaler til andre "receiving speakers". Kan sende i mono eller stereo. 16 valgfrie UHF kanaler, der kører på frekvensområdet: 823-832 and 863-865 MHz. License free og godkendt i de fleste EU lande. Tjek evt. Duplex Gab for det pågældende land). Nogle frekvensområder vil i fremtiden overgå til andre mobile enheder.

Modul to transmit the audio signal to other receiving speakers

For retrofitting the MOM-10BT4 modular PA system
For wireless audio transmission to receiving units of MOM-10BT4 PA systems (audio link mode)
1 audio link module can be retrofitted
Transmission of the master in mono or stereo R
16 selectable UHF frequencies (823-832 and 863-865 MHz)
Volume control
LEDs for power and audio signal
Detachable BNC antenna
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)

TECHNICAL SPECIFICATIONS

Power supply:	12 V DC 150 mA
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:	16 Switchable frequencys
RF power output:	10 mW
Frequency stability:	± 0.01 %
Range:	30 m with line of sight
Width:	7.1 cm
Height:	3 cm
Depth:	13.9 cm
Weight:	0.12 kg
