OMNITRONIC Set MOM-10BT4 Receiver / Audio link modul

795,00

OMNITRONIC Set MOM-10BT4 Receiver / Audio link modul - Passer til Omnitronic MOM-10BT4 - op til 4 moduler er der plads til og 16 valgfrie UHF frekvensområder (823-832 and 863-865 MHz). License-fri og kan bruges i de fleste EU-lande (Tjek evt. Duplex Gap fra land til land). Nogle frekvensområder vil i fremtiden overgå til mobiltelefon enheder, tablets m.m.

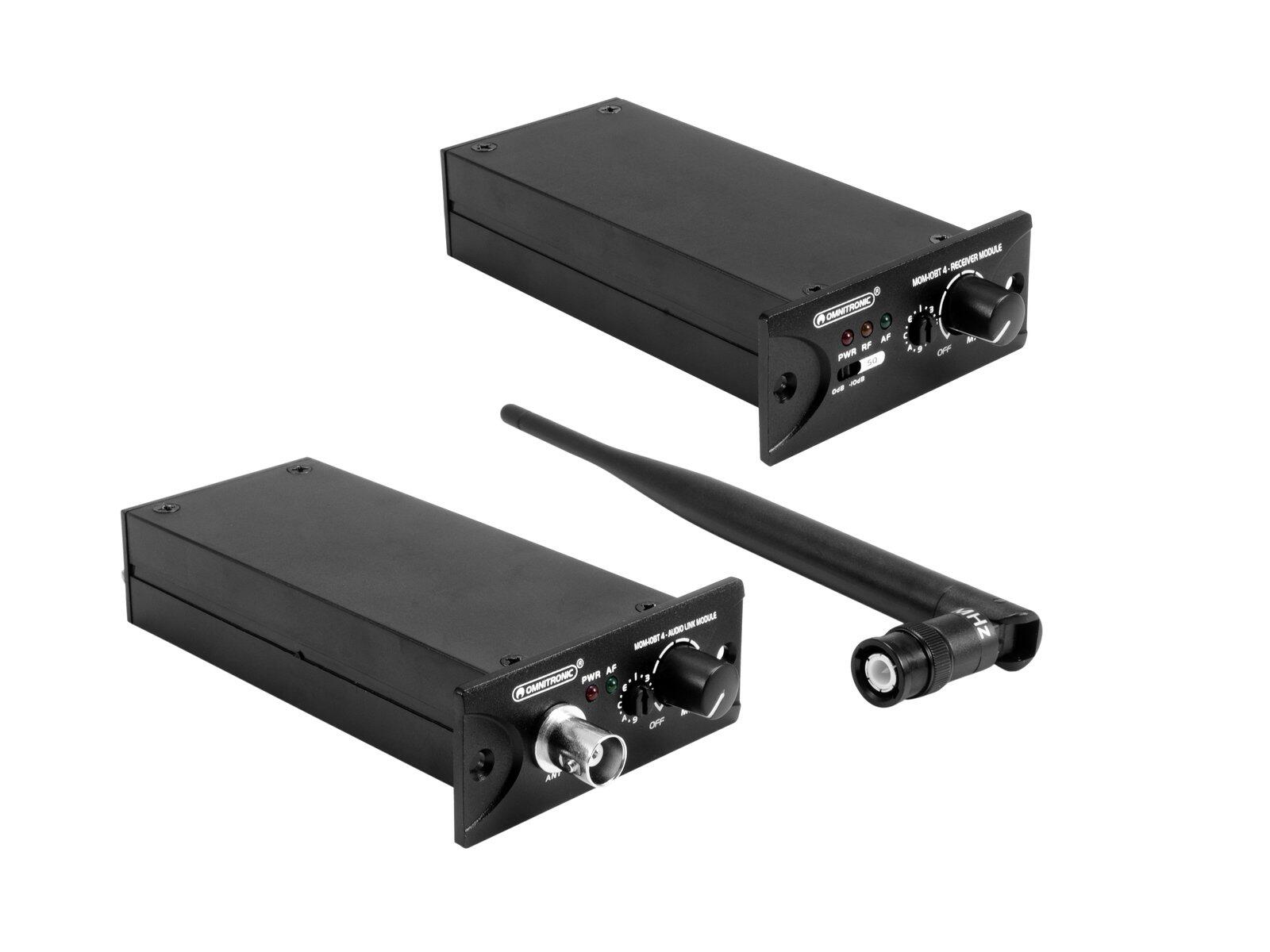

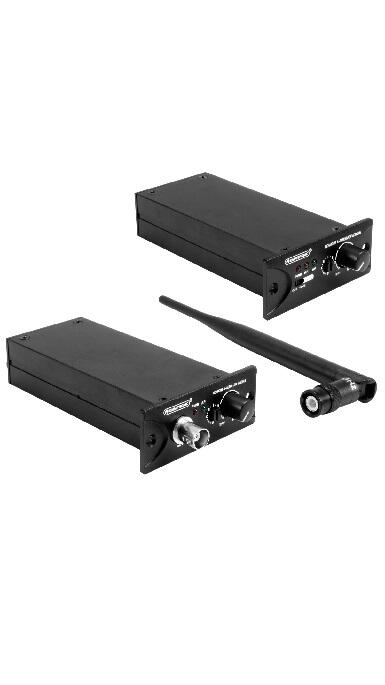

Set consisting of:
1x 13106971: OMNITRONIC MOM-10BT4 Receiver Module
1x 13106972: OMNITRONIC MOM-10BT4 Audio Link Module

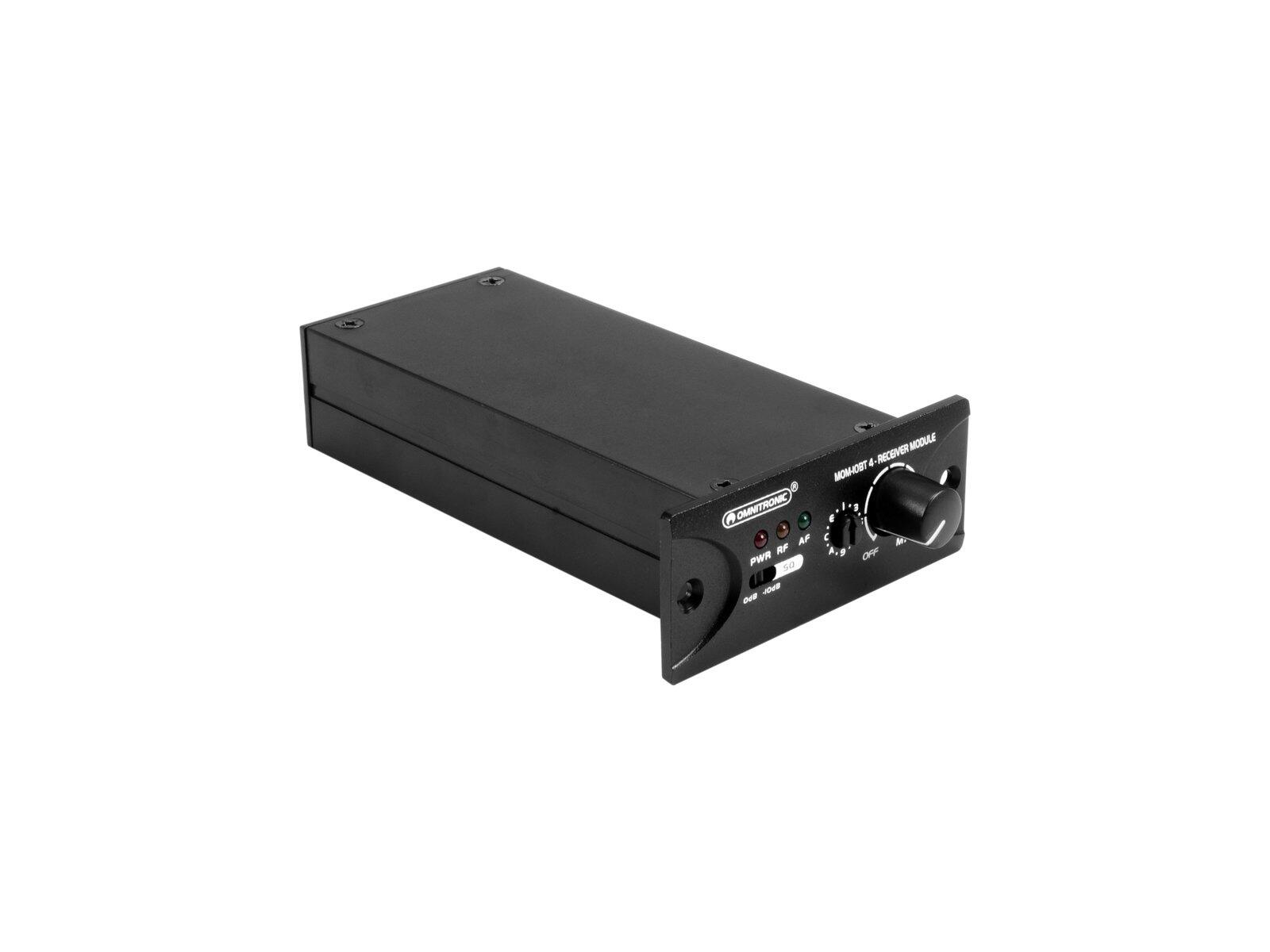

13106971 OMNITRONIC MOM-10BT4 Receiver Module

Receiving module for UHF frequencies (microphone + audio link signal)

  • For retrofitting the MOM-10BT4 modular PA system
  • Up to 4 receiving modules can be retrofitted
  • 16 selectable UHF frequencies (823-832 and 863-865 MHz)
  • Volume control
  • LEDs for power, carrier and audio signals
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)

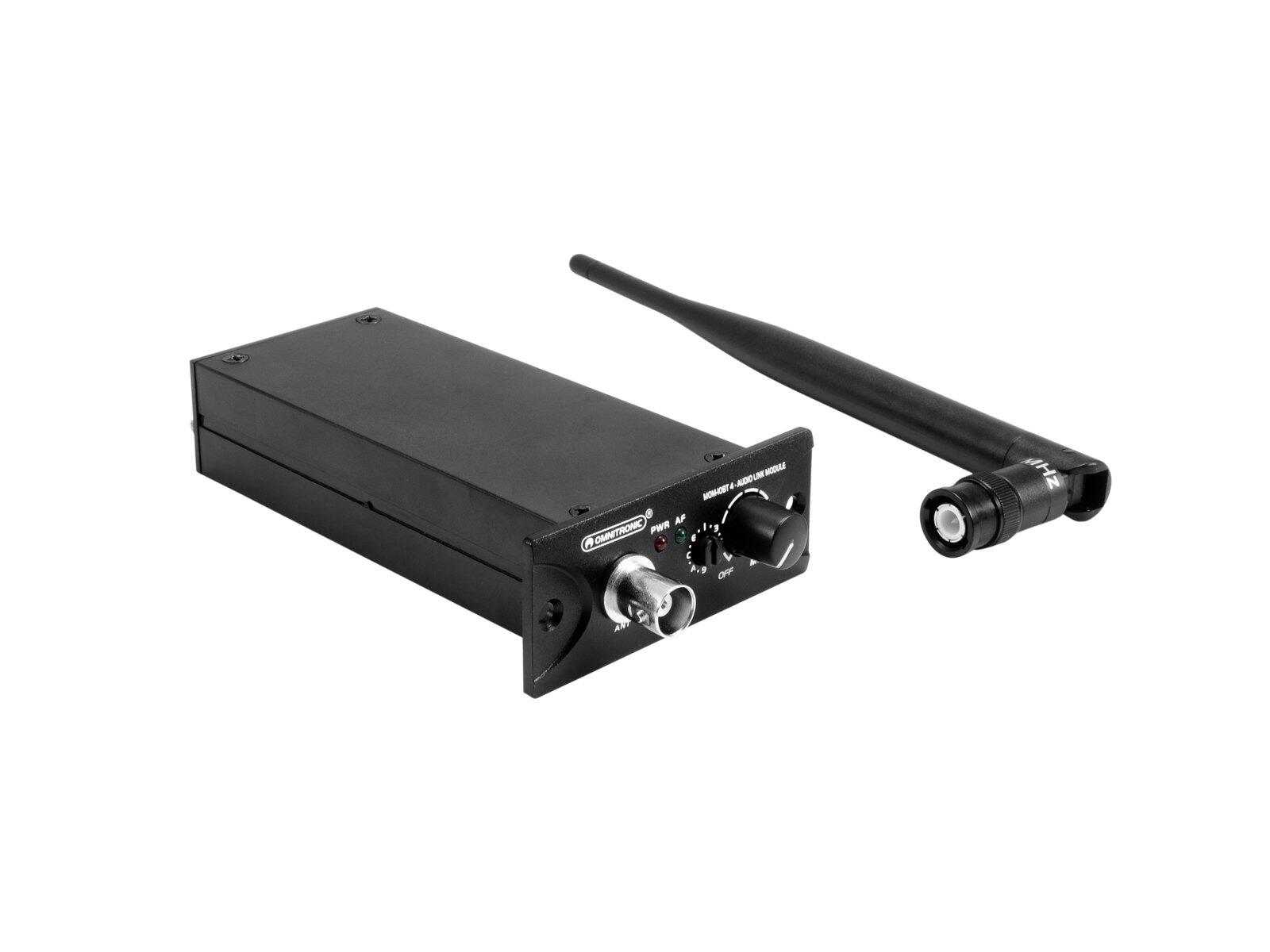

13106972 OMNITRONIC MOM-10BT4 Audio Link Module

Modul to transmit the audio signal to other receiving speakers

  • For retrofitting the MOM-10BT4 modular PA system
  • For wireless audio transmission to receiving units of MOM-10BT4 PA systems (audio link mode)
  • 1 audio link module can be retrofitted
  • Transmission of the master in mono or stereo R
  • 16 selectable UHF frequencies (823-832 and 863-865 MHz)
  • Volume control
  • LEDs for power and audio signal
  • Detachable BNC antenna
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
TECHNICAL SPECIFICATIONS
Weight: 0.21 kg
13106971 OMNITRONIC MOM-10BT4 Receiver Module
Type: Receiver
Power supply: 12 V DC 150 mA
Frequency range: 50 - 15000 Hz
S/N ratio: >80 dB
THD: <0.1 % at 1 kHz
Sensitivity: -95 dB
Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection: 16 Switchable frequencys
Frequency stability: ± 0.01 %
Range: 30 m with line of sight
Width: 7.1 cm
Height: 3 cm
Depth: 13.9 cm
Weight: 0.090 kg
13106972 OMNITRONIC MOM-10BT4 Audio Link Module
Power supply: 12 V DC 150 mA
Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection: 16 Switchable frequencys
RF power output: 10 mW
Frequency stability: ± 0.01 %
Range: 30 m with line of sight
Width: 7.1 cm
Height: 3 cm
Depth: 13.9 cm
Weight: 0.12 kg
Model/varenr.: Receiver+Audio - 20000617
Vægt: 0,21
