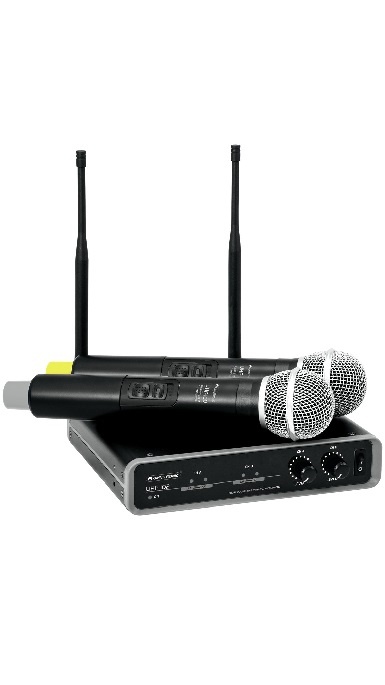

Omnitronic UHF-102
Omnitronic UHF-102 - Trådløst mikrofon system med to kanaler, to kanals modtager inkl. to trådløse mikrofoner med UHF PLL teknologi, tilgængelig og licens frit i frekvensområdet: 823-832 MHz og 863-865 MHz. Det er muligt at tilkoble op til 8 kanaler dvs. 4 gange omnitronic (2 kanals system) - parallelt system uden interferens. UHF-102 har seperat volume kontrol til begge mikrofon kanaler og LED lys, der indikerer signalet / forbindelsen. Balancerede XLR stik til hver kanal og jack stik inkl. jack kabel. Licensfrit og godkendt i store dele af EU ellers kan man tjekke: "Duplex Gap" for det pågældende land.
FEATURES:
2-channel UHF PLL microphone system
- 2-channel receiver units and 2 hand-held microphones with UHF PLL technology
- Available in the license-free frequency ranges 823-832 MHz and 863-865 MHz
- Parallel operation of up to 8 transmission channels is possible without any interference
- 2 separate channels with volume controls and LEDs for carrier signal and audio signal
- Balanced XLR output per channel
- 6.3 mm jack for mixed signal output
- Jack cable included
- Microphones with color indication
- Matching pocket transmitters can be ordered separately
- 483 mm rack installation possible with optional mounting brackets
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
- Housing design: (19") 48,3 cm rack installation possible 1 U

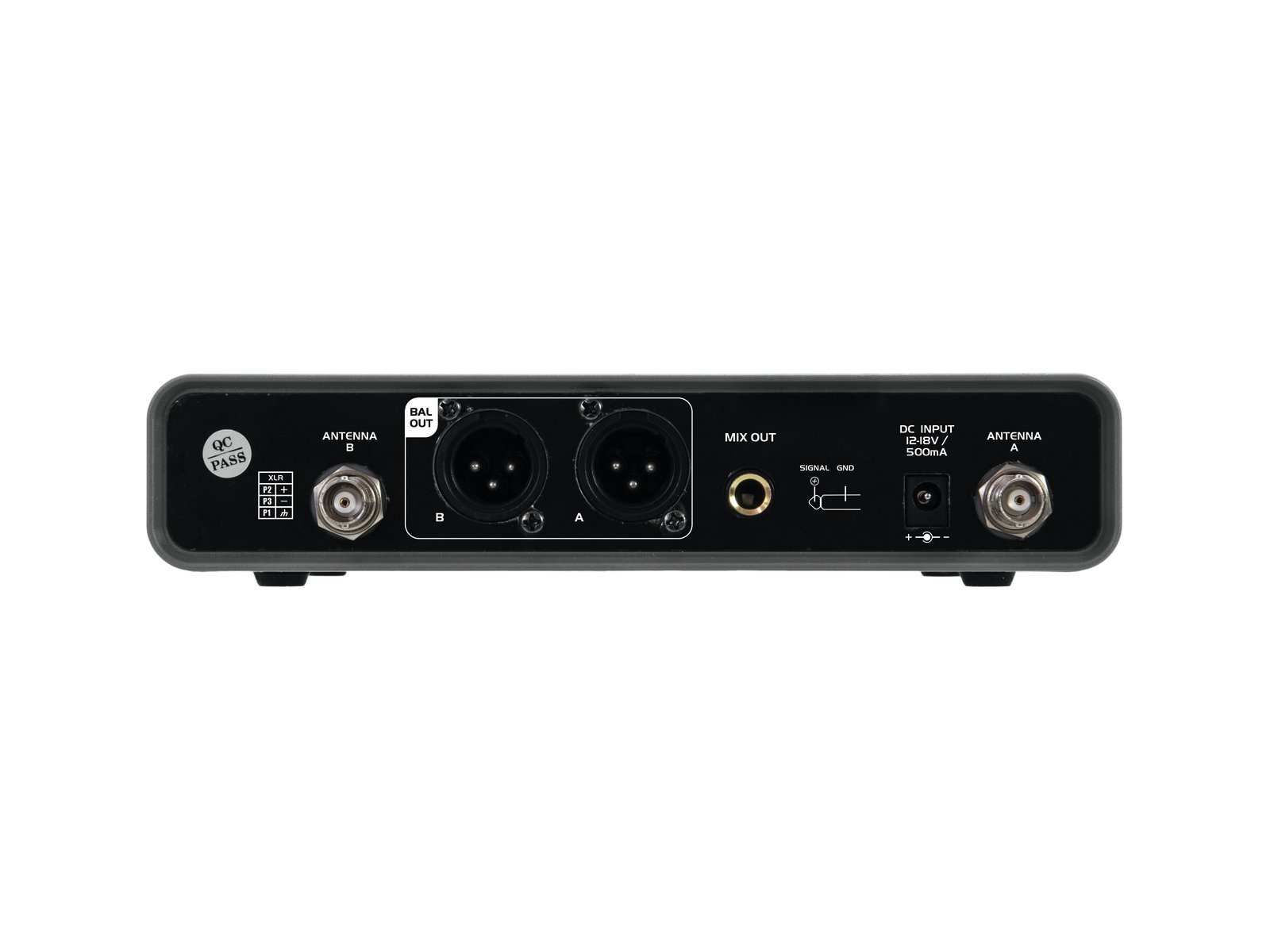

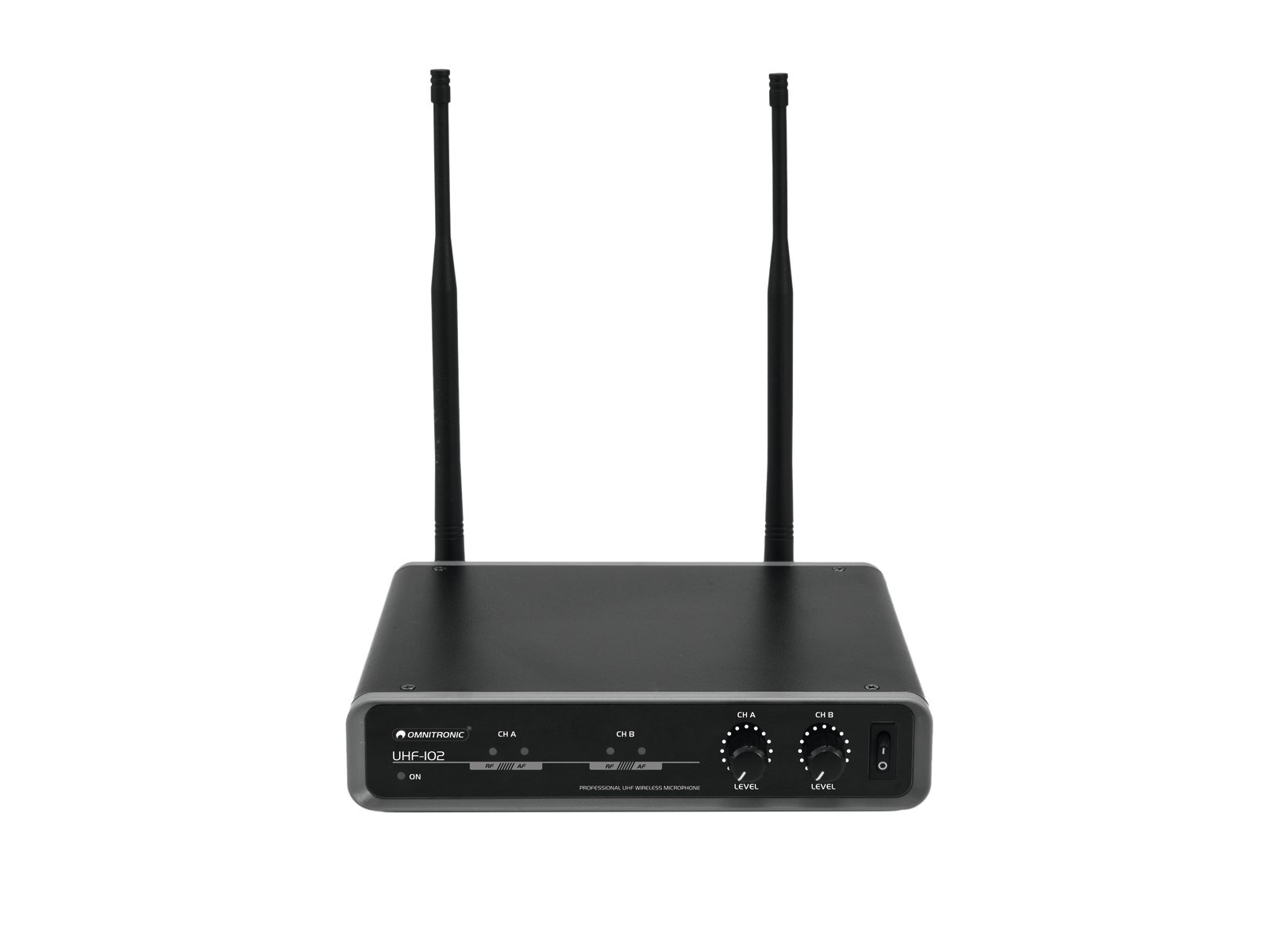

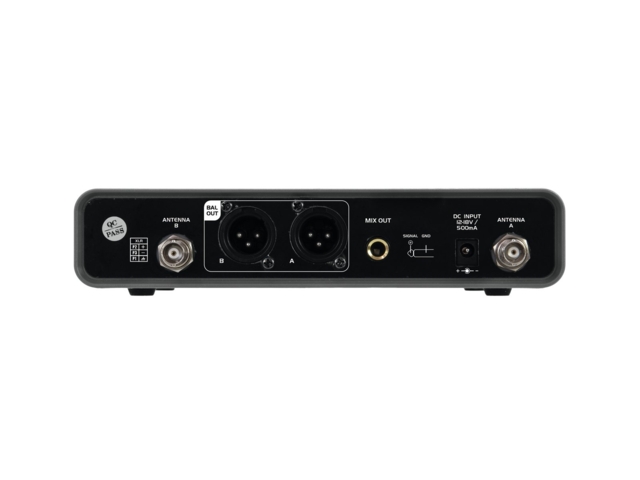

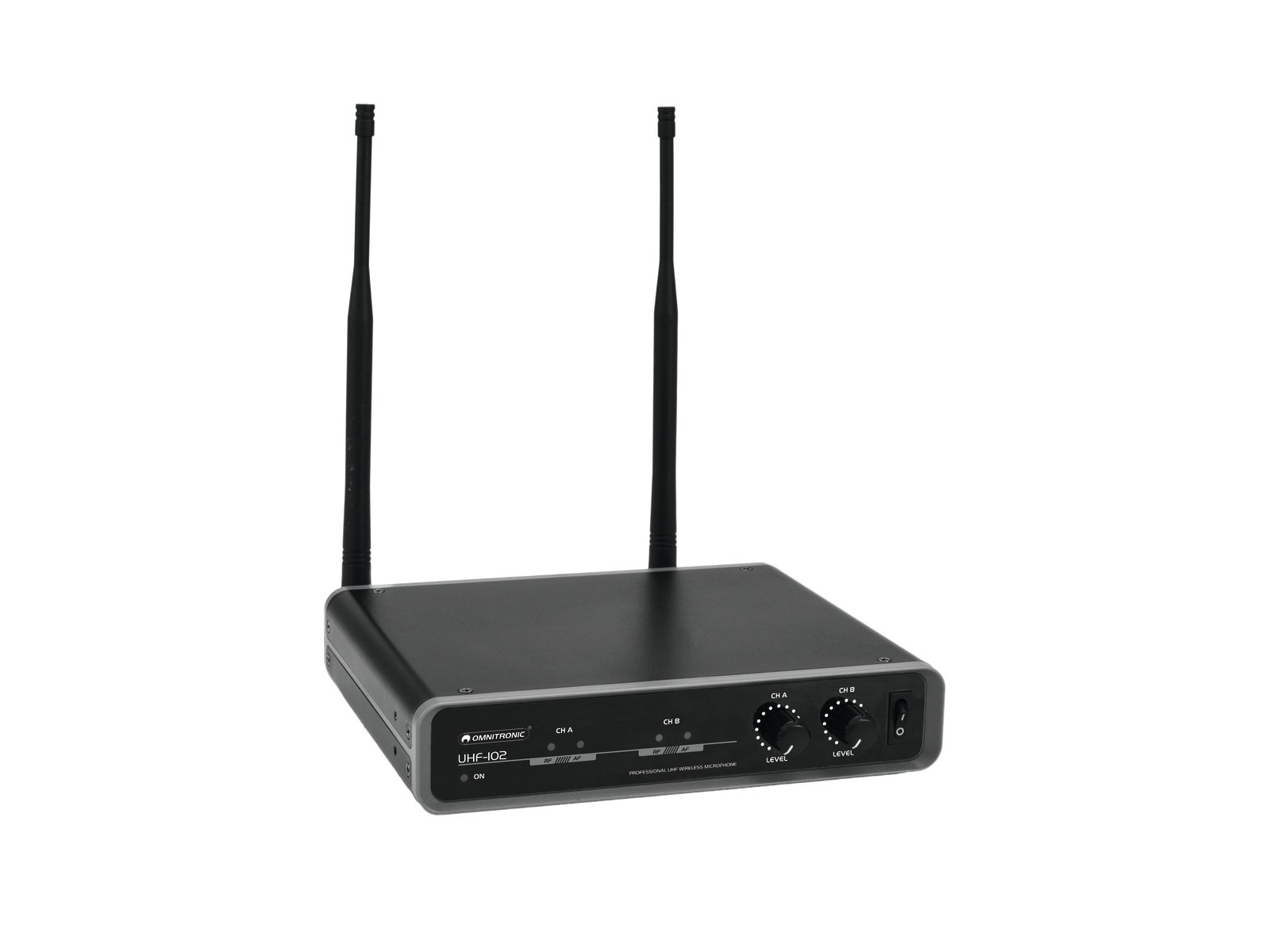

Receiver
- Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)

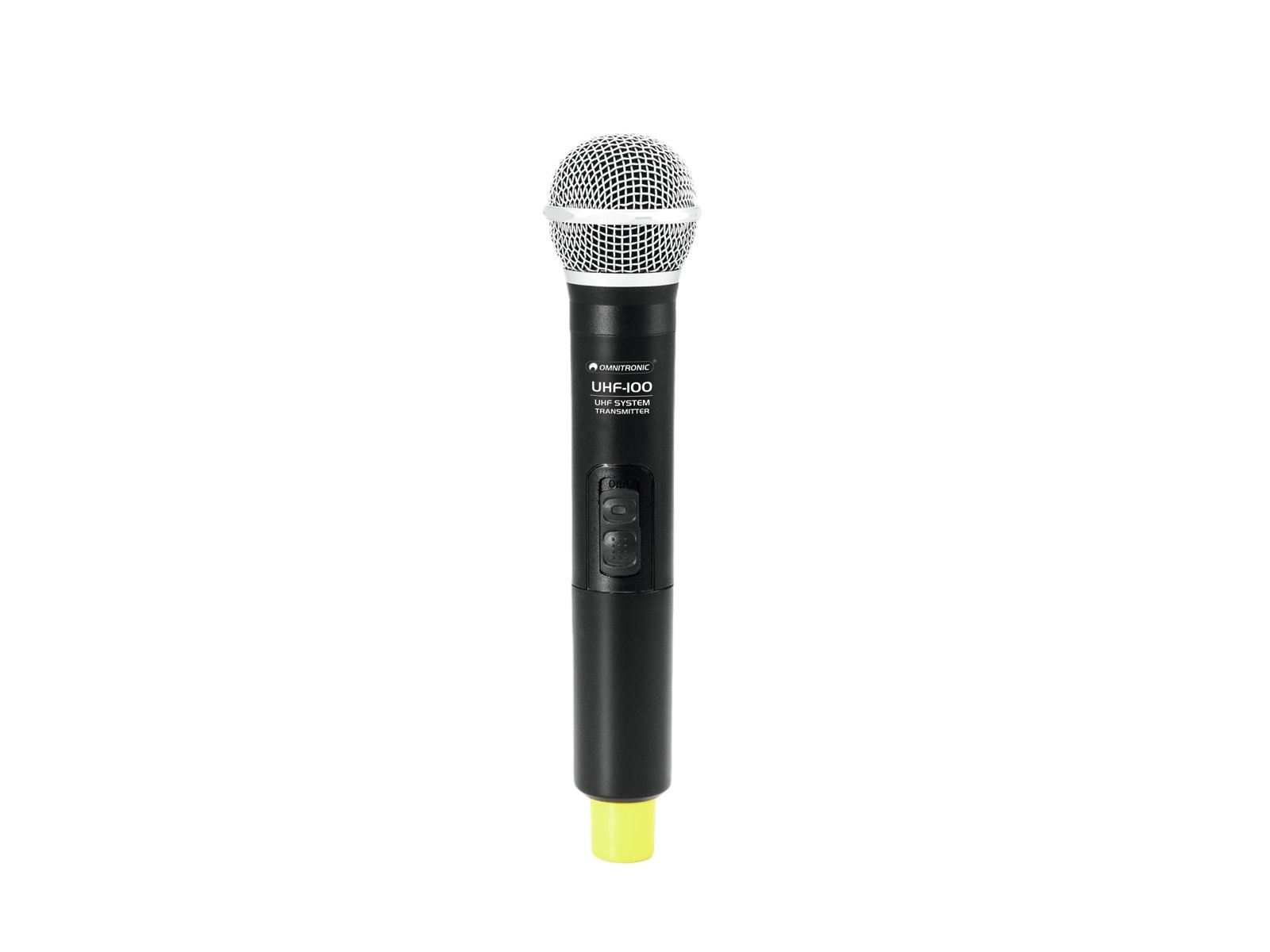

Microphone
- Polar pattern: Cardioid
- Battery: 2 x Mignon (AA) (not included)
- Power connection: Battery/battery pack
- Mute function: No
TECHNICAL SPECIFICATIONS:
| System: | Non-diversity, 2 channels |
| Carrier frequency: | 825.300 MHz, 864.100 MHz |
| RF power output: | 5 mW |
| Modulation method: | F3F |
| S/N ratio: | >105 dB |
| Selectivity: | >85 dB |
| T.H.D.: | <0.5 % at 1 kHz |
| Audio outputs: | 400 mV, 2.2 kohms (XLR, bal.) |
| 200 mV, 2.2 kohms (6.3 mm jack, unbal.) | |
| Frequency range: | 40 - 18000 Hz |
| Number of channels: | 2 |
| Range: | 60 m with line of sight |
| Carrier frequency: | 825,300 MHz; 864,100 MHz |
| Type: | Wireless set |
| Housing design: | (19") 48,3 cm rack installation possible 1 U |
| Weight: | 1,40 kg |
| Receiver | |
| Power supply: | 110-240 V AC, 50/60 Hz 12 V DC 500 mA |
| Power consumption: | 5 W |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (m) |
| Material: | Metal |
| Width: | 20,5 cm |
| Height: | 4,6 cm |
| Depth: | 22,5 cm |
| Microphone | |
| Power supply: | 3 V DC |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Power connection: | Battery/battery pack |
| Microphone-Type: | Dynamic |
| Material: | Plastic |
| Length: | 26 cm |
| Diameter: | 5,4 cm |
| Weight: | 0,23 kg |
